Shenzhen Sungold Co., Ltd.
China Manufacturer with main products: manufacturer, solar panels, solar chargers |

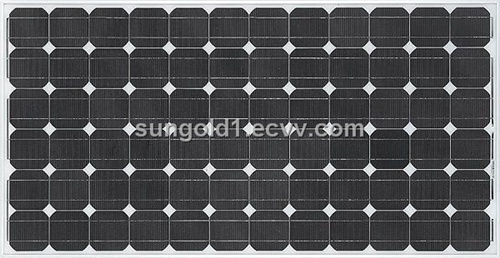

Solar Energy Module (SGM-170)
| FOB Price: | 2.00 - 2.10 USD/Yantian or Shekou |
|---|---|
| Payment Terms: | T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
Solar panel/solar module/solar energy panel/module made with good quality solar cell/TPT/EVA/strengthen glass,silicon adhesive,anodized aluminium frame.
Electrical Characteristics:
| Model | SGM-170W | ||
| Cells size (mm): | 125*125 | ||
| Cells per module: | 6*12 | ||
| Module size (mm): | 1580*808*35 | ||
| Power tolerance: | +/-3% | ||
| Nominal peak power(WP): | 170 | ||
| Nominal voltage(V): | 34.0 | ||
| Nominal current (A): | 5 | ||
| NOCT: | 45+/-2℃ | ||
| Voltage temperature coefficient: | -0.33%/℃ | ||
| Current temperature coefficient: | +0.05%/℃ | ||
| Power temperature coefficient: | -0.23%/℃ | ||
| Open circuit voltage (Voc): | 42.0 | ||
| Short cirsuit current(Isc): | 5.62 | ||
| Conversion efficiency: | 15.50% | ||
| Operating temperature: | -40 to+85℃ | ||
| Max system voltage: | 1000V DC | ||
