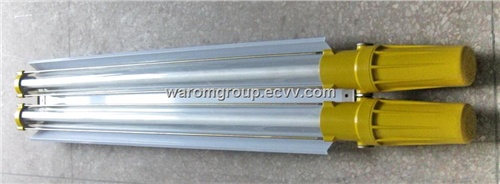

Explosion-proof Fluorescent Lamps

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Shanghai in China
Packaging Details:	Carton

Specifications

Explosion-proof Fluorescent Lamps (IIC grade with ATEX approval)

Mdel: BAY51 (18W*1, 18W*2, 36W*1, 36W*2, 58*1, 58W*2)

ATEX approval.

Ex-type: Exd IIC T6.

Protection grade: IP66.

Supply: AC220~240V, 50/60Hz.

Electronic ballast, with power factor≥0.98.

Body: Copper-free aluminum.

Glass tube: Borosilicate glass, stand 4J impact.

Protetive guard is not equipped, but can be customized in carbon steel or SS material.

Reflector: carbon steel, powder coated, can be customized in SS material.

Cable's outer diameter: 10~14mm.

Hub: Single tube: 3* M25*1.5. Dual tubes: 3* M25*1.5. Can be customizd to NPT or other threads.

Normall working conditions:

Compliances: IEC60079-0:2004、IEC60079-1:2003

Ambient temperature: -20 to +55 deg. centigrade.

Normal atmospheric pressure: 80kpa (0.8 bar) to 110kpa (1.1bar); normal oxygen content: 21%v/v.

Altitude: ≤2000m.

Relative humidity: ≤95%.

Explosive gas mixture areas (Zone 1 or Zone 2) with temperature class T1～T6.

Areas without vibration and bumping.

Areas without gases or vapors which will damage insulation.

Pollution grade: 3 grade.
