Zhangjiagang Jiacheng Electromechanical Co., Ltd.
China Manufacturer with main products: Wire Drawing Machine, Rigid Type Stranding Machine, Rod Breakdown Machine, Bunching Machine, Drawing and Annealing Machine, Annealing and... |

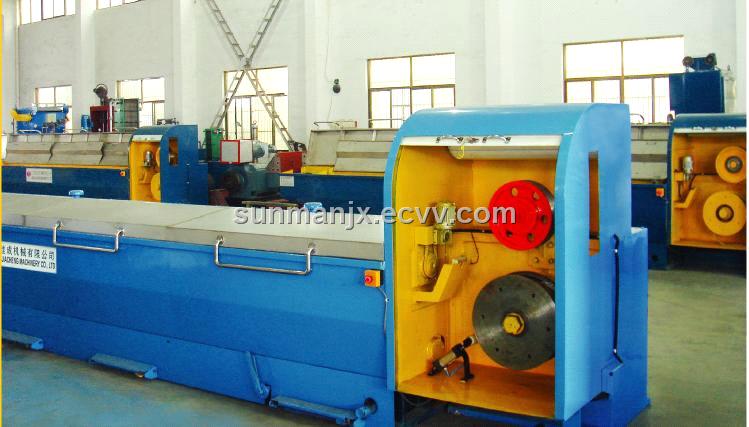

Rod Breakdown Machine with Continuous Annealer
| FOB Price: | 230,000.00 - 2,800,000.00 USD/Set |
|---|---|
| Supply Ability: | 40 Set/Sets per Quarter |
| Shipping: | 90 days |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | PE Film |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE and ISO9001:2008
- Weight: 38450KG
- Dimension(L*W*H): 27550mmL*4500mmW*3820 mmH
- Power(W): 280+75KW
- Voltage: 380V,50HZ or customized
- Model Number: JCJX-LHT450/13
- Brand Name: JIACHENG
- Outlet Diameter: 1,2mm
- Inlet Diameter: 8mm
- Condition: New
Specifications
1-Main usage:
The machine is used for drawing electrical copper rod from 8.0mm to 1.2-4mm,
which can be annealed before the outlet wire is wound by the dual take up device or coiler.
2-Main spec:
|
Machine Type |
JCJX—LHT450/13 |
|
Max.Die No |
13 |
|
Inlet wire dia |
Φ8mm |
|
Outlet wire dia |
Φ1.2-Φ3.0mm |
|
Max.Speed |
25m/s |
|
Capstan dia |
450mm |
|
Main motor |
280kw (DC) |
|
Take up motor |
15/18.5kw |
|
Annealing part (optional) |
Horizontal type |
|
Max.annealing voltage |
60V(AC) |
|
Max.annealing current |
6000A(AC) |
|
Take-up type (optional) |
1-Coiler 2-Single bobbin take-up |
