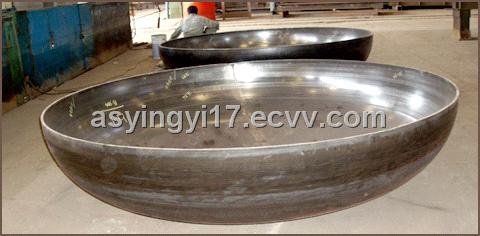

Dished End (Head)

FOB Price:	10.00 - 11.00 USD/Chinese port
Shipping:	Negotiable
Payment Terms:	L/C, T/T(Bank Transfer)

In Stock

Inquiry Now

Related products from verified members

Storage Tank

Price:50.00-300.00 USD/Set

Min. Order:10 Sets
Distilled Water Storage Tank

Price:5632.00-8954.00 USD/Set

Min. Order:1 Set
Rotational Water Tanks

Price:1.00 USD/Piece

Min. Order:1 Piece
pure water tank/water storage tank

Price:500.00-1,000.00 USD/Set

Min. Order:1 Set
Plastical water tank (WJ930)

Price:13.00-16.00 USD/Piece

Min. Order:100 Pieces
Water Tank for the Exhibition

Price:

Min. Order:1 Set

Product Details

Place of Origin:	Liaoning in China

Specifications

Here is our capacity about dished end.

1. Our company can manufacture elliptical dish end, flat bottom dish end, disc dished end, hemispherical dish end, conical dish end, flanged dish end, flanged edge sphere arched dish end, flat top dish end, expansion joint, boiler tube plate (dish end), spherical arched dish end, U-type revert ring, cone, cone flanged edge (inner & outer) and so on.

2. For above mentioned items: EHA

Spinning capacity:

Range of inner diameter: Dia.700~Dia.6000

Range of thickness:

Dia. 700 thickness 6-16mm

Dia. 800~Dia. 1400 thickness 6-20mm

Dia. 1500 thickness 6-28mm

Dia. 1600~Dia. 1700 thickness 6-30mm

Dia. 1800~Dia. 1900 thickness 6-32mm

Dia. 2000~Dia. 6000 thickness 6-40mm

Punching capacity:

Range of inner diameter: Dia.250~Dia.3400 (integral sizes)

Range of thickness:

Dia.250 thickness 4-6mm

Dia.300~Dia.400 thickness 4-18mm

Dia.450 thickness 4-16mm

Dia.500 thickness 4-20mm

Dia.550 thickness 4-14mm

Dia.600 thickness 4-26mm

Dia.650~Dia.1100 thickness 4-32mm

Dia.1200 thickness 6-40mm

Dia.1200~Dia.1500 thickness 8-40mm

Dia.1500~Dia.2400 thickness 12-40mm
