EPS Vacuum Forming Machine
| FOB Price: | 40,000.00 - 80,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | 30days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden |
Specifications
EPS Vacuum Forming Machine
EPS Machine for Insulation Roof
EPS foam shape moulding machine with vacuum SPZ100-200T--Typical type
EPS Machine for Insulation Roof
EPS foam shape moulding machine with vacuum SPZ100-200T--Typical type
Specifications:
1) Mold dimensions: 1200 x 1000mm
2) Product dimensions: 1050 x 850 x 350mm
3) Connected load: 10.6kW
Max. Product dimension: 1850*1600*350mm,
Steam consumption: (10-13)steam of 1Tmaterial

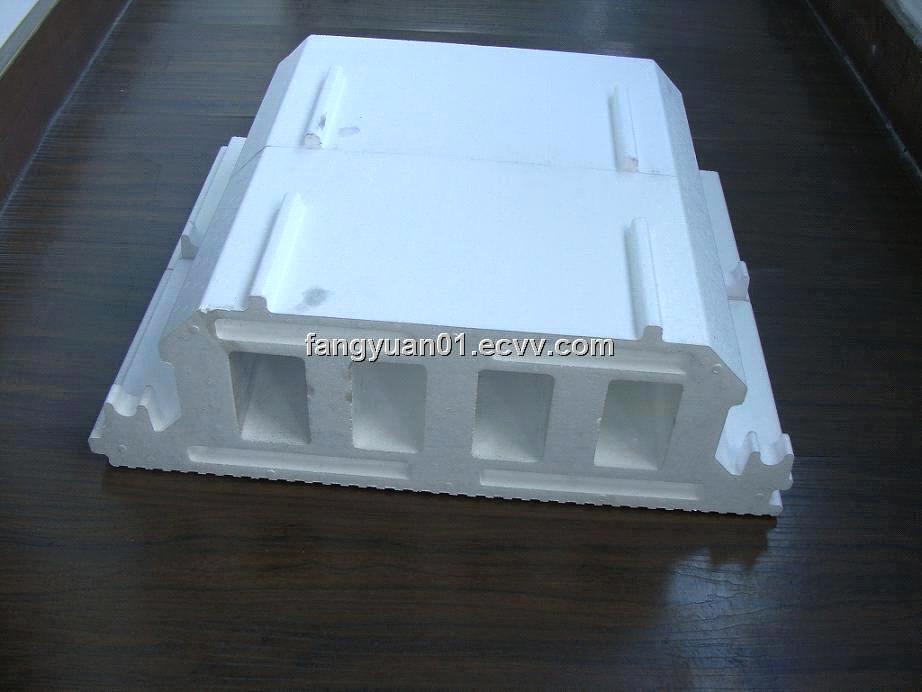

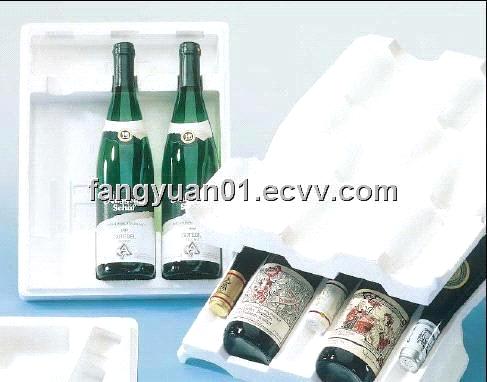

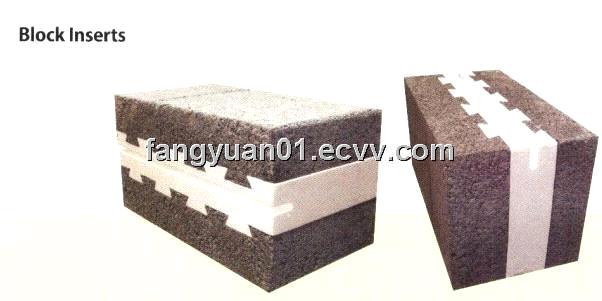

Various applications in agricultural and elctronic parts packaging. Such as fish box. ICF. Insert, decoration parts. Helmet. Model. Etc.
The EPS shape moulding machine has many improvements compare to the basic type shape molding machine and the features are as follows:
1. Machine structure:
A, All frame are welded by 16/20mm steel plate with high machine legs, greatly improve machines' stronger;
B, High machine legs made by strong " H" type profile. Which is easy for operator to collect products;
2. Filling system: Adopt normal pressure\vacuum and high pressurized filling, hopper controlled by level sensor with double rotation chamber discharge, and 44 filling outlet;
3. Steam system: Adopt balance PID control valve with Germany gauge, greatly improve accurate steam, and reduced consumption;
4. Cooling system: Big vacuum pump with vertical tank, equip with vertical vacuum cooling water spray on the top, steam outlet has air\water separator, all these keep very high efficiency;
5. Drainage system: Increased large inlet and outlet of mould, adopts 8- 1" outlet for steam, keep fast cycle time, 8-2" outlet for drainage system, keep fast drainage; And 6" big drainage pipe controlled by butterfly valve, greatly increased fast steam and fast drainage operation;
6. Control system:
A, Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;
B, All electronic components adopts famous brand(Schneider, Omron, Germany gauge), greatly increased stable;
C, The air cooling\steam\de-mould\pressure of filling controlled by long-distance adjustable and balance valve control.
1. Machine structure:
A, All frame are welded by 16/20mm steel plate with high machine legs, greatly improve machines' stronger;
B, High machine legs made by strong " H" type profile. Which is easy for operator to collect products;
2. Filling system: Adopt normal pressure\vacuum and high pressurized filling, hopper controlled by level sensor with double rotation chamber discharge, and 44 filling outlet;
3. Steam system: Adopt balance PID control valve with Germany gauge, greatly improve accurate steam, and reduced consumption;
4. Cooling system: Big vacuum pump with vertical tank, equip with vertical vacuum cooling water spray on the top, steam outlet has air\water separator, all these keep very high efficiency;
5. Drainage system: Increased large inlet and outlet of mould, adopts 8- 1" outlet for steam, keep fast cycle time, 8-2" outlet for drainage system, keep fast drainage; And 6" big drainage pipe controlled by butterfly valve, greatly increased fast steam and fast drainage operation;
6. Control system:
A, Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;
B, All electronic components adopts famous brand(Schneider, Omron, Germany gauge), greatly increased stable;
C, The air cooling\steam\de-mould\pressure of filling controlled by long-distance adjustable and balance valve control.
CE certificate, ISO9001:2008
