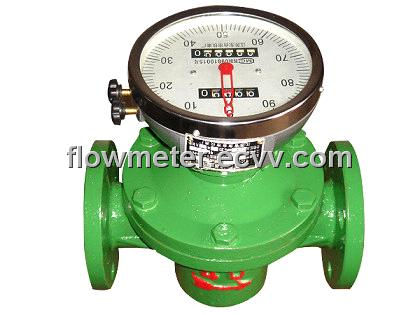

LC Oval Gear Flow meter

FOB Price:	100.00 - 2000.00 USD/Piece
Supply Ability:	1,000 Piece/Pieces per Month
Shipping:	5 --10 working days
Payment Terms:	L/C, T/T(Bank Transfer), Western Union, PayPal

In Stock

Inquiry Now

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	Standard export wooden case

Specifications

LC Series oval gear flow meter, the main type of positive displacement flow meters, is used to measure pressure in the pipeline closed under full pipe flow of the fluid flow. It has high accuracy, reliability, long life and wide range, small pressure loss, viscosity and good adaptation, is essentially unregulated measuring temperature, pressure change, and ease of installation. Petroleum products mainly used for measuring the cumulative flow, can also be used for other chemical solution (except the corrosive agents) measurement. Direct Reading of the flowmeter accumulated fluid-flow meters, is equipped with a pair of oval gear switched from the measurement chamber, sealed coupling (a small-caliber flowmeter high sensitivity magnetic coupling) and technical institutions

Basic error limit		±0.5
Nominal pressureMPa		1.6
Working temperature		-30-+160
Liquid viscositymPas		0.6-200
Type	Inside nominal diameter(mm)	Flow ratem2/ h
		Viscosity of oil productmPas			Chemical liquid viscositym2/ h
		0.6-2	2-8	8-200	0.6-200
LC-10	10	0.15-0.4	0.08-0.4	0.04-0.4	0.1-0.4
LC-15	15	0.38-1.5	0.25-1.5	0.15-1.5	0.3-1.5
LC-20	20	0.75-3	0.4-3	0.3-3	0.6-3
LC-25	25	1.5-6	0.8-6	0.6-6	1.2-6
LC-40	40	3-15	2-15	1.5-15	2.4-12
LC-50	50	4.8-24	3.2-24	2.4-24	3.8-19
LC-80	80	12-60	8-60	6-60	10-50
LC-100	100	20-100	13-100	10-100	16-80
