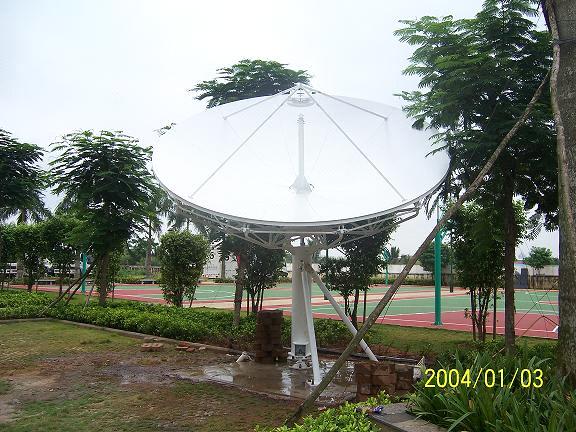

Probecom 4.5m C Ku band VSAT Antenna

FOB Price:	1.00 - 1,000.00 USD/Set
Supply Ability:	1,000 Set/Sets per Year
Shipping:	10 days after receiving the deposit
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	export packing

Specifications

Probecom 4.5m c ku band VSAT Antenna

Features:

Meets or Exceeds CCIR 580 and INTELSAT Requirements

High G/T, Excellent Pattern Characteristics

Thermal Spaying Zinc Steel Ground Mount Assembly

C-band Antenna Operating in 800MHz Bandwidth Option

2-port, 3-port or 4-port Linear/Circular Feed

Field Changeable Feed System, Switchable Circular to Linear C-band

Antenna Az 0-360deg Continuous Pointing Range

4.5m C/Ku band VSAT antenna specification

ELECTRICAL SPECIFICATION:

Operating Frequency, GHz

C-Band:Rx(3.625-4.2) Tx(5.85-6.425)

Ku-Band:Rx(10.95-12.75) Tx(14.0-14.5)

Polarization: Linear/ Circular

Radiation Pattern:First Sidelobe less than -14, Meet ITU-RS.580-5 and other requirements

MECHANICAL SPECIFICATION:

Azimuth ±60° (Continuous)

Elevation 0°-90°(Continuous)

Polarization 180°(Continuous)

Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc

ENVIRONMENTAL SPECIFICATION:

Operational Wind 72km/h Gusting to 97km/h

Survival Wind 216km/h

Temperature - 40°C - + 60°C

Relative Humidity 100%

Solar Radiation 1135Kcal/ h/ m2

Seismic (Survival) 0.3g (H), 0.15g (V)

2.4m Earth Station Antenna,3m Earth Station Antenna,3.7m Earth Station Antenna,4.5m Earth Station Antenna,6.2m Earth Station Antenna,7.3m Earth Station Antenna,9m Earth Station Antenna,11m Earth Station Antenna,11.3m Earth Station Antenna,13m Earth Station Antenna,16m Earth Station antennas operating at Ka, Ku, X, C, S, or L frequency bands
