Product Details

Place of Origin:	Guangdong in China
Packaging Details:	white box for the hid ballast packing

Specifications

We are the manufacturer of hid proudcts,such as hid ballast ,hid bulbs,hid projector light ,care led and so on.

SPACIFICATION FOR OUR HID CONVERSION KIT

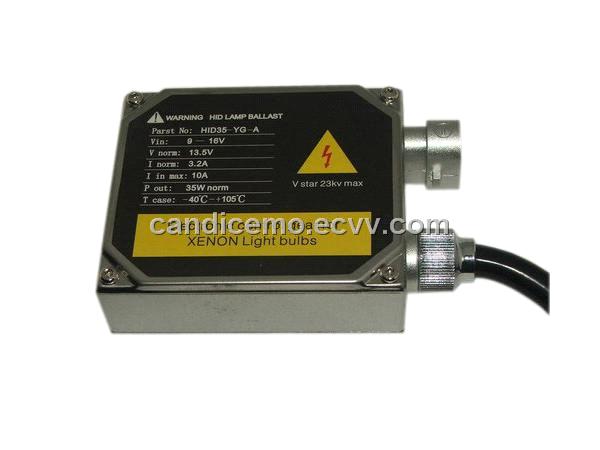

PARAMETERS FOR BALLAST
General
Operating Temperature :-40 to 105 c
Steady State light Output: 3000lumens typical ,bulb type dependant
Turn on Light Output: >70%at 2 secs, >85% at 3 secs
Expected Ballast Life: >3500 hrs
Radiated EMI Susceptibility: S95/54/EC
Radiated EMI Emissions: S 95/54/EC
Cooling: Air cooled
Maximum Cable Cable Length: 500mm
Output Wave Form:125 Hz square wave
Steady State Output Power:35W
Open Lamp Circuit Protection: Latch off after 1 second
Shot Circuit Protection: Latch off after 1 second
Maximum Output Current: 8 A initial lamps _disibledevent="a">3A next 2 secs
Maximum Output Power:80W
Steady State Output Volts:85V
Striking voltage: 23000V
Flickering: No flickering: during steady status
Electrical Input
Steady State Input Voltage: 9~16 V
Max in Rush Current: 15 A @ 50ms,8 A at 2secs
Decreasing to Steady state within 30 secs
Max Steady State Input Power: 45W (9 to 16V)
Input Turn On: 9 V and above
Input Turn Off: Below 8 V
Reverse Voltage Protection: No damage to ballast with -40V
Conducted EMI Susceptibility: S95/54/EC
Conducted EMI Emission: S95/54/EC
Compact Size: 80 X 70 X 30 mm
Weight: 0.41 kg
Efficiency: Over 90% during steady status
