Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	naked

Specifications

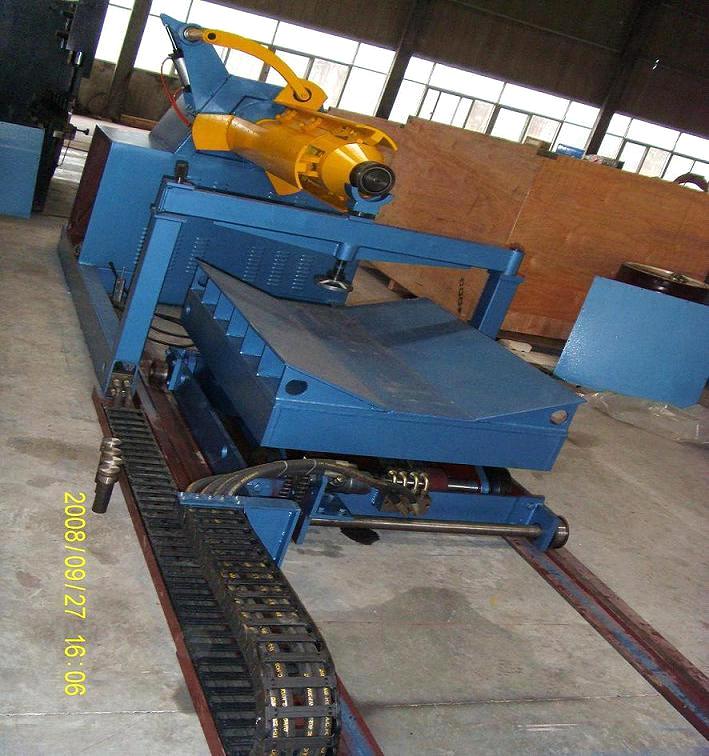

Machine description:

This machine mainly consists of uncoiler, hydraulic station, pneumatic press arm, coil loading trolley and guide rail. The uncoiler mandrel can shrink and expanse to meet different inner diameter of steel coils. With the control of PLC, this machine can load the steel coil onto the uncoiler automatically by coil car and uncoiler mandrel interaction. It has better loading capacity and performance than simple uncoiler, also its automatic coil load ensures the worker’s safety.

Working flow:

load coil onto the trolley—trolley move forward and life the coil to the mandrel—mandrel expanse—trolley move backward—mandrel start rotation—uncoiling-- press arm hold down the coil when machine stop

Technical parameter:

Uncoiler capacity: max 10000kgs

Mandrel inner diameter: 508-610mm

Mandrel length: max 1500mm

Hydraulic power: 11kw

Hydraulic pressure: 16MPa

Pneumatic pressure: 1MPa

Trolley capacity: max 10000kgs

Moving speed: max 8m/min

Moving distance: max 3000mm

Lifting height: max 600mm

Controlling system: PLC

Main machine dimension: about 4000*1500*1500mm

Machine weight: about 2500kgs

Voltage: 380V, 3 Phases, 60Hz or according to customer’s requirement
