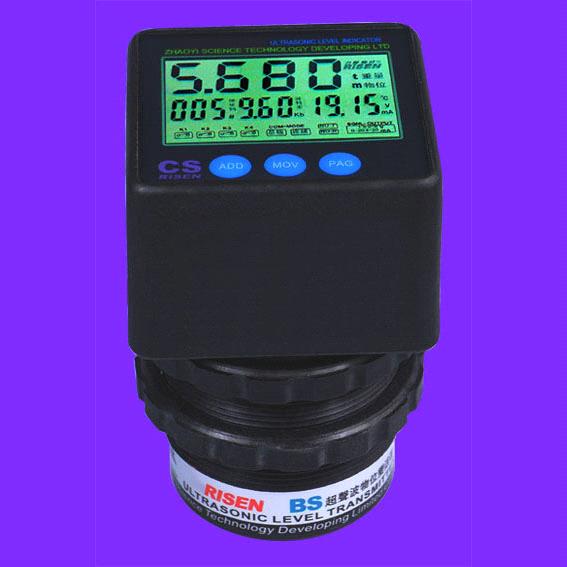

RISEN Intelligent one-piece ultrasonic

Inquiry Now

Specifications

◆Technical parameters(Models not with the below parameter could be customized)

·Product model RISEN-CS

·liquid level measurement range 0.5～7m(Under clean environment, with rigid and smooth objective surfacecorresponding wave beam projected area)

·detection: ≤300～350mm(varies from different measure range and sensor)

·accuracy of detection: 0.25～0.5%(25℃,outside two times of the blind area)

·output signal: 4～20mA; RS485(optional)

·display: LCD

·operation temp: 0～+50℃(default); could be customized-10～60℃, -20～70℃

·power supply: DC24V/300mA, DC12V/300mA(optional)

·protection level: sensorIP65(shelter cover)

·Application environment: normal pressure, non-corrosion, in normal(not explosionproof) environment

·explosion proof level: Explosion proof,EXia II AT3(optinal)

◆Main Function and characteristics

RISEN-CS digital mini level meter has realized the concept of general type of level meter of full digitilization, industrialization, and humanization. It contains complete level measurement and contol, digit transmission and human-unit communication functions.It integrates ultrasonic receive and send sensor,servo circuit,temperature compensate sensor and compensation circuit unit, display, control signal output and serial signal or analogue output unit, its functions are complete with high stability and reliability. It obtains the national production certificate and explosion proof licence(anti-explosion products), could be used in various environment of liquid level and solid level and distance measurement and control.
