Yangzhou JFMMRI Metalforming Machinery
China Manufacturer with main products: hydraulic press, press machine, mechanical press, power press |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|
Specifications

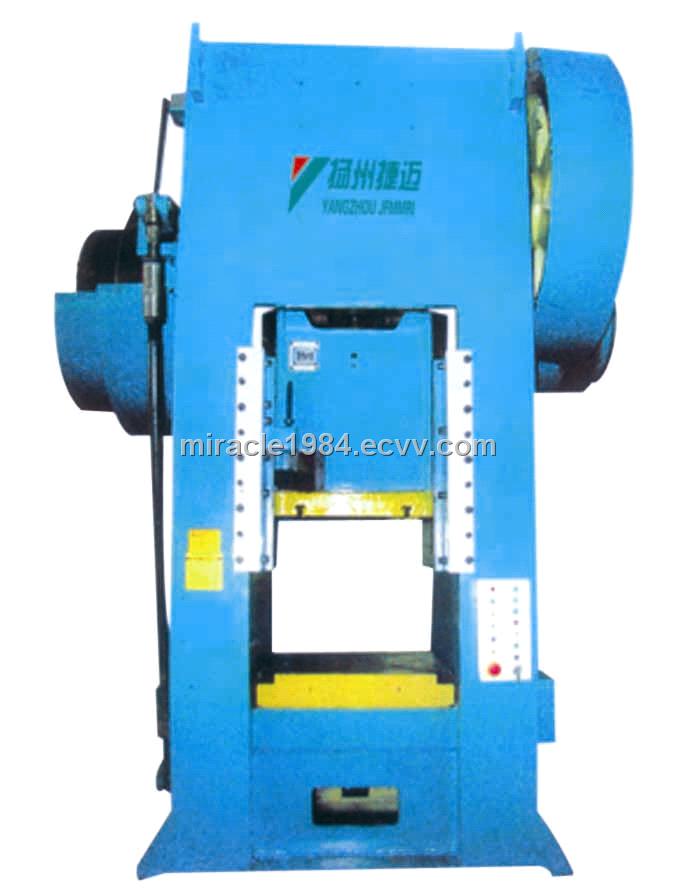

Fit for car parts' drop-forging, tyre-forging and open-die forging, etc.
1. Steel-welded frame, high rigidity and less deformation.
2. Long rectangle guides, to make die has strong load deviation resistant capacity.
3. Special up , down shedder, to satisfy forging technics.
4. Air control system adopt PLC control system.
| Items | Unit | DL21-500 | DL21-630 | DL21-800 | DL21-1000 | |
|
Nominal force |
KN |
5000 |
6300 |
8000 |
10000 | |
|
Nominal force stroke |
mm |
16 |
16 |
16 |
16 | |
|
Stroke of slide |
mm |
250 |
250 |
280 |
280 | |
|
strokes per minute |
spm |
25 |
25 |
20 |
20 | |
|
Max. die set height |
mm |
600 |
650 |
700 |
750 | |
|
Die height adjustment |
mm |
160 |
160 |
180 |
180 | |
|
Size of table |
L-R |
mm |
1000 |
1080 |
1230 |
1400 |
|
F-B |
mm |
1000 |
1000 |
1100 |
1250 | |
|
Bottom size of slide |
L-R |
mm |
1000 |
1100 |
1250 |
1400 |
|
F-B |
mm |
1000 |
1000 |
1100 |
1250 | |
|
Overall mode |
|
|
|
|
| |
|
Ejection mode |
|
| ||||
|
Air pressure |
Mpa |
0. 55 |
0. 55 |
0. 55 |
0. 55 | |
|
Main motor power |
KW |
45 |
75 |
75 |
90 | |
|
Total weight |
T |
63 |
92 |
115 |
150 | |
