Product Details

Place of Origin:	Tianjin in China

Specifications

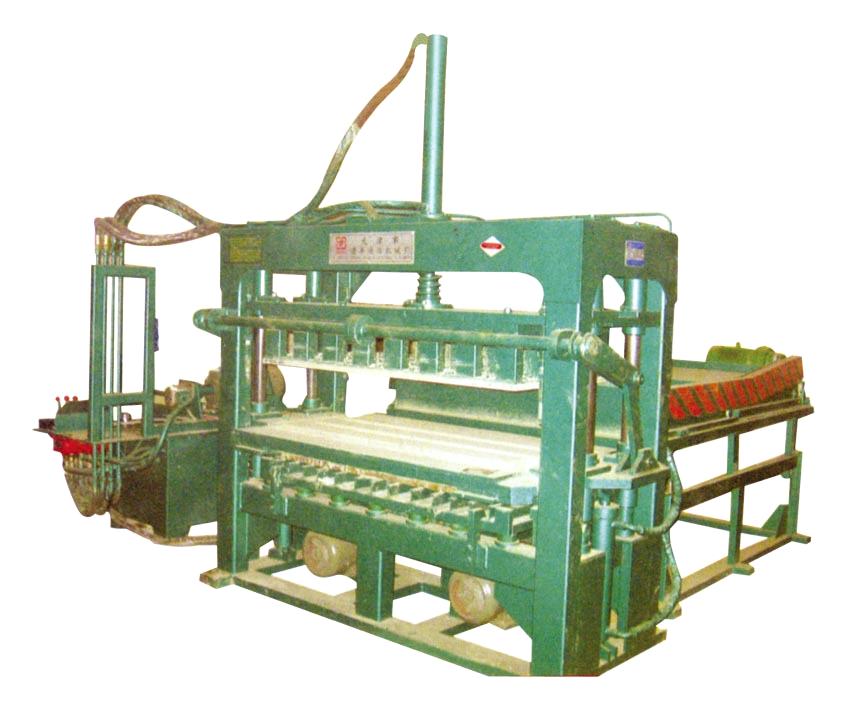

JF-ZY2000 Multifunctional Jolt-squeeze Type Railway Guard Bar Forming Machine

Feature

1. Capable of producing cement products such as multiple types of railway guard bars etc.

2. With four-pillar guiding and patented lengthende guide sleeve, the structure is more firm and durable.

3. Supporting facilities are complete, so as to raise the degree of mechanization and to save the human resource greatly.

4. Compulsory die synchronized structure so as to ensure the uniformed thickness of productw, stable demoulding and high rate of finished products.

5. Realize the automatisation of plates’coming*out, aggregate, shock and pressing, enabling the bar bricks to one-time form.

Main technical parameter

1. Maximum specification of product formed each time: 1500*700*300mm.

2. 1block formed each time(1500*7000 *300mm)

3. 8 hours’production output(designed capacity): 500blocks(take the railway pile pillar as a example)

4. Actuating shock force: 68KN

5. Frequenty of shock: 5000times per minute

6. Amplitude: 15mm

7. Noise: 95db(A)

8. Shock time: about 10seconds each time

9. Forming cycle: 60 seconds each time

10. Overall dimension: 3000*2700*2900mm

11. Installed capacity: 15. 5KW

12. Weight of complete machine: 5000Kg

13. Maximum pressure: 20T

This machinery is easy to operate, no need to accept specialized training when operating, the production efficiency are high; The labor intensity is small; Energy consumption is low. Just change the mould can produce various of bricks that you to need, one machine is multipurpose, it is investor's ideal choice.

we are a professional company dealing with the complete set of production line for producing concrete block making machine. Our turnkey service is involved in designing, equipments manufacturing, erection & commissioning and training. Keeping close cooperation with its professional engineering company and heavy machinery manufacturing company, we can provide our customers with the better service, high quality machinery and competitive price.

We are specialized in manufacturing brick making machine。We have exported to some foreign country. Our machine is automatic hydraulic brick making machine, it is economic, advanced and environment-friendly. Its unique vibration is "hydraulic and mechanical vibration": it means there are two pressure, one from the topper hydraulic pressure, one come from the bottom mechanism vibration, so it can prepare the material from two side, avoiding the gap in it, and make the brick compact and strong.
