Weihai Changan Constrution Machinery Co., Ltd.
China Manufacturer with main products: Loader, Paver, Roller, Mixing Plant |

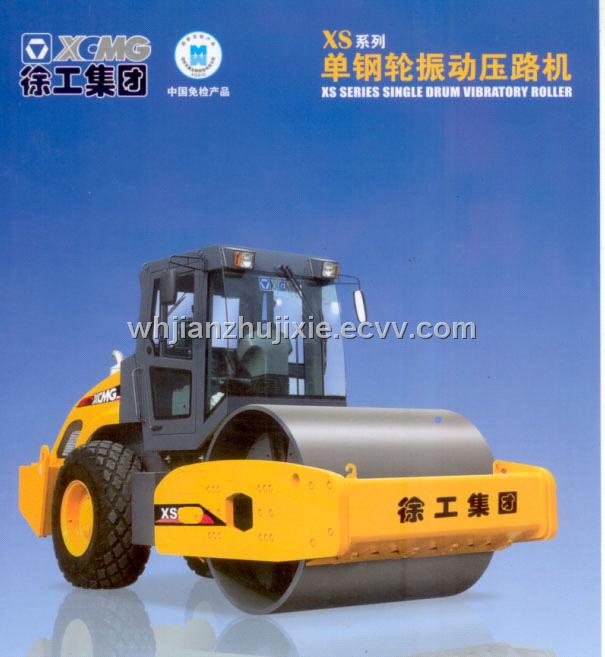

Vibratory Roller
| Shipping: | 30 Days after Receipt of 30% of total amount |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|
Specifications
Main technical specification
Type：XS5141,XS161,XS182,XS202,XS222
Operating weight（kg）：14500,16800,18000,20000,22000
Load on front drum（kg）：9000,10700,11500,113500,15000
Load on rear wheels(kg)：5500 ,6100,6500 ,6500,7000
Diameter of drum(mm)：1523,1523 ,1523 ,1600 ,1600
Width of drum(mm)：2130,2130,2130,2130,2130
Static linear load（N/cm）：410,492,540,621,704
Minimum ground clearance（mm）：462,462,466,466,466
Vibration frequency(Low/High)：28/35,28/35,28/33,28/33,28/33
Nominal amplitude(High/Low)：1.80/0.9,1.80/0.9,1.86/0.93,1.86/0.93,1.86/0.93
Centrifugal force(High/Low)：305/225,320/235,340/240,370/225,390/270
Speed（km/h）：0~12,0~12,0~10,0~10,0~10,0~10
Steering angle（ °）：±35,±33,±33,±33,±33
Swing angle(°)：±10,±10,±10,±10,±10
Gradeability in theory（﹪）：50,55,50,50,50
Minimum turning radius（mm）：6000,6320,6500,6500,6500
Engine model：CuminsB5.9-C,CuminsB5.9-C,CuminsB5.9-C,CuminsB5.9-C,CuminsB5.9-C
Engine power（kw）：113,138,138,138,138
Rated rotating speed（r/min）；2500,2300,2200,2200,2200
Overall dimension(L*W*H)：（mm）：6025*2430*3244,6222*2430*3244,6222*2390*3077,6222*2390*3077,6222*2390*3077
Engine oil tank consumption（g/kw.H）：248,232,232,232,232
Hydraulic oil tank capacity（L）：180,206,240,240,240
Fuel tank capacity（L）：190,206,240,240,240
