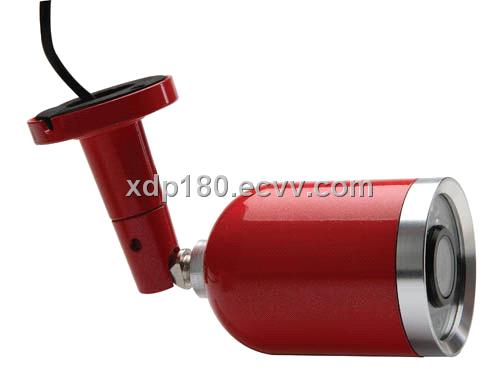

10M Submersed IR Camera (XDP-3403A)

Supply Ability:	1,000 Piece/Pieces per Day
Shipping:	7
Payment Terms:	T/T(Bank Transfer)

Inquiry Now

Related products from verified members

IP Camers (LUV420IRS)

Price:

Min. Order:
960P Panoramic Bulb WiFi Home Camera Wireless S...

Price:39.00 USD/Piece

Min. Order:1 Piece
CCTV Camera- Vandalproof Camera

Price:

Min. Order:

Product Details

Place of Origin:	Guangdong in China

Specifications

1/3" SONY Color SuperHAD IT or SuperHAD II Low Lux CCD
SONY SS11X Digital signal processor (DSP)
allows better picture quality and full function control
High Resolution 450TV Lines; 500TV Lines
Low Sensitivity: 0 Lux (Infrared LED On, at F1.2)
Outstanding signal to noise ratio better than 48dB or 50dB
Compact function for Shutter/Auto; BLC/Auto; AGC/Auto; Day & Night Function
Mini size, difference color for selection
From 15~20m Visibility Range at Darkness
Dust-Proof/Weather-Proof(IP67), allow immersion in water
Front Glass Anti-reflection Design
Cable Protection Bracket Design
6.0mm fixed lens
DC 12V

MODEL	XDP-3403A	XDP-3403B
Pick up Device	1/3" SONY SuperHAD Interline Transfer CCD
Signal Format	PAL or NTSC (color)
Picture Elements	PAL:500Hx582V NTSC:510Hx494V	PAL:752Hx582V NTSC:768Hx494V
Horizontal Resolution	450 TVL	500TVL
Sensitivity	0 Lux at F1.2(Infrared LED On)
Infrared LED	12 LEDs
Infrared LED Range	15~20m
Scanning System	PAL:625 TVL; NTSC:525TVL 2:1 Interlace
Synchronization	Internal sync.
Infrared Spectrum	850 nm
S/N Ratio	Over 48dB(AGC off)	Over 50dB(AGC off)
Auto Gain Control	Auto
White Balance	Auto
Electronic Shutter	Up to 1/100,000 sec.
Back Light Compensation	Auto
Video Output	1 Vp-p,75\|?Composite ,BNCx1
Audio Output	N/A
Mirror	N/A
Gamma Ratio	0.45
Auto-iris Lens Control	N/A
Lens	6.0mm Lens
Lens Mount	M12xP0.5mm Thread
Exterior Focus Adjustment	N/A
Pan Adjusting	N/A
Tilt Adjusting	N/A
Power Supply	12V DC ?à10%, ? 2.0mm DC Jack x1
Power Consumption	220mA	230mA
Dimensions	D45?áL63(mm)
Net Weight	188g
Weatherproof/Water Proof	Weatherproof(IP67)
