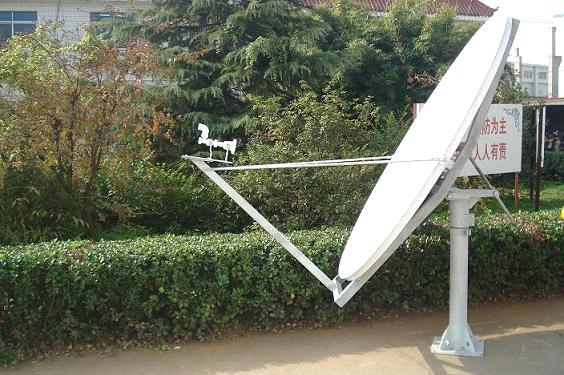

Probecom 1.8 meter C Ku band VSAT Antenna

Shipping:	3 days after receiving the deposit
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	export packing

Specifications

Probecom 1. 8 meter C KU band VSAT antenna

Intelsat approved antenna& Customized satellite antenna manufacture

Earth station antenna,C/KU band antenna,VSAT antenna,Satellite dish antenna,RX antenna,Microwave antenna,SNG antenna, satellite antenna

Features:

Meets or Exceeds CCIR 580 and INTELSAT Requirements
High G/T, Excellent Pattern Characteristics
Thermal Spaying Zinc Steel Ground Mount Assembly
C-band Antenna Operating in 800MHz Bandwidth Option
2-port, 3-port or 4-port Linear/Circular Feed
Field Changeable Feed System, Switchable Circular to Linear C-band
Antenna Az 0-360deg Continuous Pointing Range

1. 8m C/Ku band earth station antenna specification
ELECTRICAL SPECIFICATION:
Operating Frequency, GHz
C-Band: Rx(3. 625-4. 2) Tx(5. 85-6. 425)
Ku-Band: Rx(10. 95-12. 75) Tx(14. 0-14. 5)
Polarization: Linear/ Circular
Radiation Pattern: First Sidelobe less than -14, Meet ITU-RS. 580-5 and other requirements

MECHANICAL SPECIFICATION:
Azimuth ±60° (Continuous)
Elevation 0°-90°(Continuous)
Polarization 180°(Continuous)
Finishes Reflector Surface Pedestal & Back Structure Aluminum panels with high-diffusing white paintThermal Spraying Zinc

ENVIRONMENTAL SPECIFICATION:
Operational Wind 72km/h Gusting to 97km/h
Survival Wind 216km/h
Temperature - 40°C - + 60°C
Relative Humidity 100%
Solar Radiation 1135Kcal/ h/ m2
Seismic (Survival) 0. 3g (H), 0. 15g (V)
