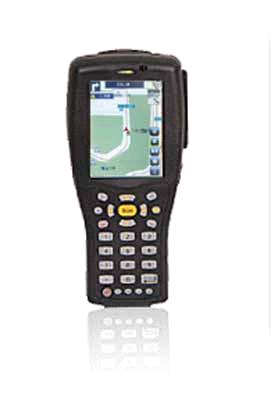

GPS Mobile Computers

Inquiry Now

Specifications

Linear 1D Barcode Scanner

Supports UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8, CODE 39, CODE 128,
CODABAR/NW7,Interleave 2/5, Industrial 2/5, Matrix 2/5, CODE 93, CODE 11,
China Postage, MSI/PLESSEY.
2D CCD Barcode Scanner
Supprots QR Code, PDF417, Data Matrix, Micro QR Code, Micro PDF417,
Aztec Code
Integrated HF RFID Reader
Standard Supported：ISO-14443A/B, ISO-15693, ISO-18000-3
Operating Frequency：13.56MHz
Reading Distance：0～10cm
Integrated UHF RFID Reader
Standard Supported：ISO 18000-6A, ISO 18000-6B, ISO 18000-6C, EPC Class 0, EPC Class 1 (GEN2)
Operating Frequency： 862 MHz-955 MHz
Reading Distance：10-80cm（Passive Tag）
PERFORMANCE CHARACTERISTICS
Data capture options: 1D linear,2D imager, HF/UHF RFID Reader
External interfaces RS232, USB 1.1
Memory (Flash/RAM) 128MB RAM; 128MB Flash
Operating system (OS) Microsoft Windows CE 5.0 Professional
Processor (CPU) Samsung 400MHz processor
PHYSICAL CHARACTERISTICS
Audio options: Speaker, Microphone, Headset Jack
Dimensions: 19.0cmX8.5cmX4.5cm
Display: Transflective color 3.5” full VGA with backlight, 320 x 240
Display type: LED backlight, touch screen
Keyboard: 26-key Alphanumeric
Network connections: Full-speed USB, host or client
Weight Standard:400g with battery
POWER
Main battery Rechargeable Lithium Ion 3.7V, 3200 mAh Smart Battery
REGULATORY SPECIFICATIONS
CE CCC FCC
Environmental: RoHS-compliant
USER ENVIRONMENT
Drop specification: 1.2m drop to concrete
Environmental sealing IP54
Humidity 95% non-condensing
Operating temperature: -10°C to 50°C
Storage temperature -20°C to 60°C
WIRELESS DATA COMMUNICATIONS
WLAN: 802.11b/g
Security: supports 802.1x and CISCO CCX2/3
Antenna: Internal
WAN
GSM/GPRS Class 10, GSM27.10 Multiplex
Antenna: Internal/External
Bluetooth: Class1.1
Antenna: Internal
GPS
Satellite Receiver: 20 Channels
Accuracy: 10m
Antenna: Internal
