High Speed Data Transceiver (FC-222)
| Shipping: | 3 workdays after payment |
|---|---|
| Payment Terms: | T/T(Bank Transfer), Western Union |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
Data radio, Narrow-band Based. High sensitivity. Low cost. Reliable for telemetry and industry

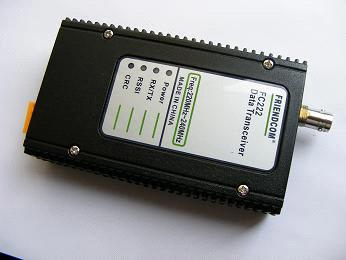

Data Transceiver FC-222
Features:
1. Frequency : 223-235MHz, or 220MHz -222MHz,450-470MHz available
2. Muti-Channels : 16 channel
3. 3FSK Modulation : high-efficiency encoding technology
4. High Sensitivity: used high performance narrow-band chip to realize high receiving sensitivity.
5. Adjustable Bandwidth: user can adjust bandwidth among 5KHz12.5KHz18.75KHz and 25KHz
6. Adjustable power: user can set RF power base on its application among 1W,2W,3W,4W,5W,6W
7. Abnormal Frequency Technology:The TX and RX frequency can be different and the TX and RX channel can be exchanged.
8. Safe and Reliable data transmission:adopt M series encryption and CRC32 checksum to ensure safety and reliability of data on air transmission.
9. Interface modes: RS-232,RS-485 or TTL. Optional
10. Multi Data Rate: user can set according to its system interface data rate base on 1200bps,2400bps,4800bps,9600bps,19200bps.
Technical specification:
1Power supply :+10.5V +15.0V,Nominal voltage +12.5V
2Standby current :≤80MA
3RX current :≤100 MA
9.TX current :≤1.6A
3Operating temperature : -40+85
5.Channel spacing :5KHZ
6.Modulation : 3FSK
8.RF output power :5.5W±0.5W
9.SpurousEmissions (Radiated) : ≤-65 dB
10:RX sensitivity :≤-118dBm1200bps.
11.Size: 106*54*18 mm
12: Weight : 150g
