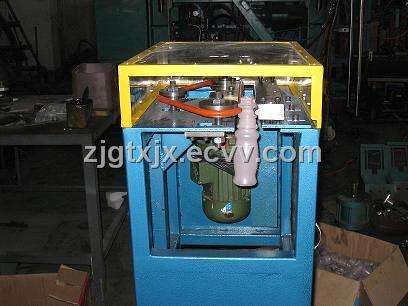

Automatic Cutting Machine (TCQ-3)

Supply Ability:	30 Set/Sets per Quarter
Shipping:	15days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

CNC Plasma Cutting Machine

Price:

Min. Order:1 Set
Economical Automatic Metal Sheet Slitting Line ...

Price:100,000.00-150,000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Jiangsu in China
Packaging Details:	Wooden case

Specifications

The cutting machine is to adopt new technologies of Europe, Automatic cutting wide mouth plastic products bottles. Incision smooth,low-cost, High-yield advantages.

Technical parameters are as follows.

1.Basic specification:φ10-φ160 mm ( we can depend on the customers bottles demanding).

2. Size: ( length * width *height) 550*400*1320 (mm)

3. Weight: 150Kg

4. Power:(KW) 0.55 Three Phase induction motors (including reducer).

5.Pulley speed: 120(r/min)

6. Incision knife: high-speed carbide just to strengthen handling, cut the width of 40mm, adjustable, flexible.

7. It is able to cope with the main machine into the plastic bottles, cutting plastic bottles and meanwhile bottles will separate automaticly from the edge scrap of bottles.

8. Conveyor belt without nodes, adjustable degree of tension, high stability of the bottles is falling back.

9. Enter Plastic bottles height (mm): 1220 (Accordig to the production of highly specific needs, adjustable)

10. E.G : φ70 Milk bottles This machine can finish 360pcs/min
