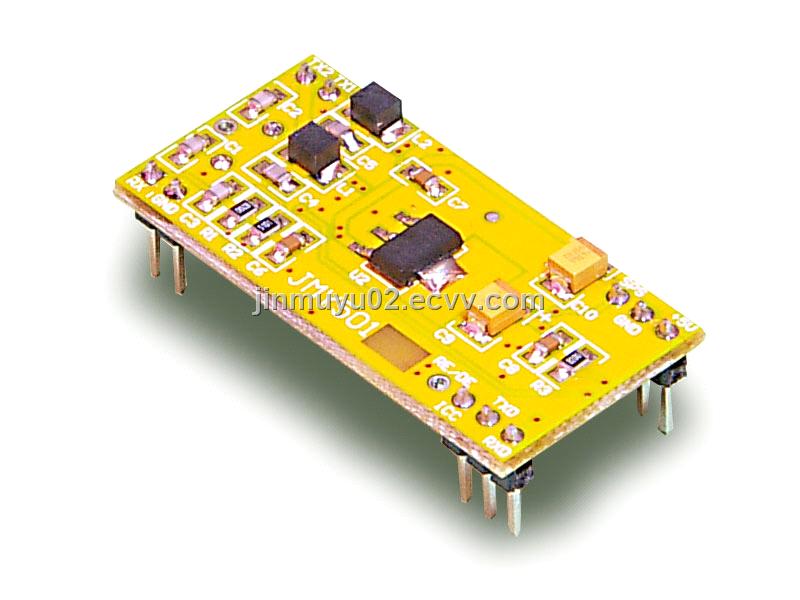

13.56MHz RFID Reader Module JMY501H
| FOB Price: | 17.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Week |
| Shipping: | 5 days |
| Payment Terms: | T/T(Bank Transfer), PayPal |
Related products from verified members
| Place of Origin: | Beijing in China |
|---|---|
| Packaging Details: | BOX |
Specifications
JMY501H RFID reader module
PCD model: NXP CL RC632
CPU: P89LPC936
Protocol: ISO14443 Type-A and Type-B, ISO15693
Working frequency: 13.56MHz
Card supported: Mifare 1K/4K, FM11RF08, Ultra Light, DesFire, Mifare ProX, SR176, SRI512, SRI1K, SRI2K, SRI4K, SRIX4K, T=CL smart cards(both ISO14443A & ISO14443B) , TI TagIt, I.Code SLI, ST LRI and other ISO15693 tags
Anti collision ability: Full function of anti-collision; be able to process multi-cards; be able to set operate single card only
Auto detecting card: Supported, default OFF
EEPROM: 512 Bytes
Power supply: DC 5V (±0.5V)
Interface: IIC & UART (selected by SPS pin, recommend to use IIC)
Communication rate: IIC-400Kbps; UART-19.2Kbps/115.2Kbps
Max command length: 254 Bytes
Interface level: 3.3V (TTL level; 5V tolerance)
Power consumption: 70mA
Reading range: 100mm (depending on card and antenna design)
Dimension: 42mm*21mm*8mm
Package: DIP32
Weight: About 15g
ISP: Yes
Operating temperature: -25 to +85 °C
Storage temperature: -40 to +125 °C
RoHS: Compliant
Antenna connects to the module by 4 wires
TX500, size: 70mm*70mm, 90mm reading range
TX501, size: 50mm*50mm, 70mm reading range
TX502, size: 30mm*30mm, 60mm reading range
OEM/ODM is available.
