Shanghai Vipeak Heavy Industry Machinery Co., Ltd.
China Manufacturer with main products: Jaw Crusher, Stone Crusher, Impact Crusher, Sand Making Machine, Raymond Mill, Ball Mill |
16th
| Place of Origin: | Shanghai in China |
|---|---|
| Packaging Details: | export standard |
Specifications

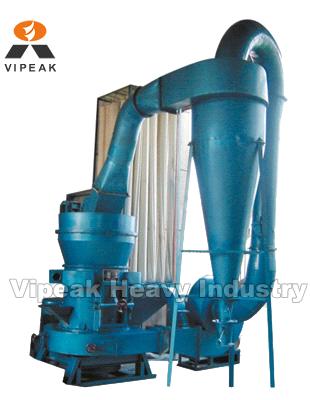

On basis of many times experiments and improvement, introducing the latest mechanical techniques of Sweden , High Pressure Micropowder Grinding Mill, the latest industrial micro-powder grinding mill, is a new type grinding machine for producing micro-powder.
High Pressure Micro-powder Grinding Mill can grind calcite, limestone, calcite, dolomite, kaolin, bentonite, talc, illite, pyrophillite, barite, meerschaum, fluorite, potash ore and other more than 200 kinds of materials that Moh's hardness is below 6, non-explosive, non-flammable minerals.
Features of High Pressure Micropowder Grinding Mill:
Energy-saving
Wide Application Range
Good craftmanship
Powder Fineness: < 6. 5um~< 12. 5 um
Three-dimensional structure
Centralized control for the electric system, convenient to operate
Technical Parameter:
|
Model |
YGM7826 |
YGM8327 |
YGM9531 |
|
No. Of Roller (Pcs) |
3 |
3 |
4 |
|
Diameter of Roller(mm) |
Ф260 |
Ф270 |
Ф310 |
|
Diameter of Ring(mm) |
Ф780 |
Ф830 |
Ф950 |
|
Speed of Main Mill (r/min) |
160 |
140 |
130 |
|
Max Feeding Size (mm) |
< 20 |
< 20 |
< 20 |
|
Capacity (kg/h) |
25-500 |
30-680 |
150-1000 |
|
Motor Model and Power of Main Mill (kw) |
Y225M-8-18. 5 |
Y225M-8-22 |
Y225S-4-37 |
|
Motor Model and Power of Air Blower (kw) |
Y160L-4-15 |
Y180M-4-18. 5 |
Y200L-4-30 |
|
Motor Model and Power of Classifier (kw) |
Y160M-6-7. 5 |
Y160M-6-7. 5 |
Y160M-6-7. 5 |
|
Total Power (kw) |
41 |
48 |
74. 5 |
|
Dimension (L×W×H)(mm) |
4. 5 × 4. 2 × 5. 1 |
5. 3 × 4. 1 × 5. 2 |
7. 1 × 5. 9 × 7. 9 |
|
Weight (t) |
4. 8 |
6 |
11. 5 |
|
Weigh t(mm) |
0. 025—0. 01 the finest 0. 005 | ||
