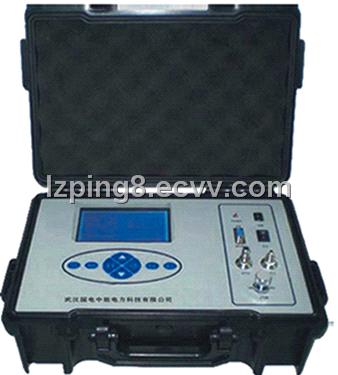

SF6 Gas Moisture Meter

Specifications

Gas Moisture Meter
Uses:

CMS-EX type (SF6) the hygrometer is the replacement products of measuring humidity. It showd advanced technology and design from core to appearance, the products were researched and developed by our,company's senior engineers and university’s expert, it was firstly introduced to replace import goods and was widely recognized by experts and users. the type (SF6) tester has the advantages of high-precision/high stability’s humidity sensor and quick speed testing. The testers are widely used in substations SF6 Gas Micro-water and the system switches hydrogen station, hydrogen-cooled generator set water-hydrogen micro-precision, rapid detection, metallurgy, chemical, petrochemical and other industry-specific micro-water-gas detection.


Features:

Zero auto-calibration, advanced probe protection, full curve tracing the amendment, simple operation, easy to carry, the unique large-screen display, anti-pollution, anti-interference, the unique large storage capabilities, good repeatability and fast response, first curve shows high sensitivity, good stability, first of electricity display, automatically converted to standard values at 20 ℃.

Technical Specifications:

Measuring range: -80 ℃ ~ +20 ℃
Accuracy: ± 0.5 ℃
Resolution: 0.001 ℃ or 1PPm
Response time: Dew point at +60 ℃ ~ -20 ℃, ≤ 1min;
               Dew point at -20 ℃ ~ -45 ℃, ≤ 3min;
               Dew -45 ℃ ~ -80 ℃ at the time, ≤ 5min;
Power Supply: 220V AC and DC dual-use, charge time can be used 10 hours
Operating Environment: Temperature: -20 ℃ ~ +60 ℃
Relative Humidity: 0 ~ 95%
Pressure: ≤ 1.5Mpa
Output Interface: RS232 or RS485 4 ~ 20mA current (dew point output),
precision +0.0002 mA
The size:  360 × 240 × 130mm;
Weight: 5kgs
