Product Details

Place of Origin:	Guangdong in China

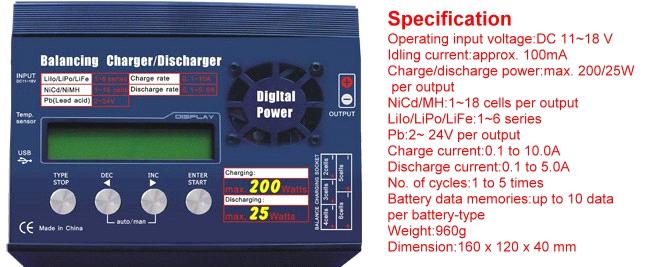

Specifications

User's setting-up parameters
Lithium battery type	LiIo:3.6V, LiPo:3.7V, LiFe:3.3V
NiCd Delta-peak voltage sensitivity	5 to 20mV
NiMH Delta-peak voltage sensitivity	5 to 20mV
Battery temperature cut-off	Off, 20 to 80C
Waste time between charge/discharge cycle	1 to 60 minutes.
Trickle charge mode	ON/Off, up to 200mA
Integral timer limit for safety	Off, 10 to 720 minutes
Maximum charging capacity limit for safety	Off, 10 to 9990 minutes
Key beep and buzzer sound	ON/OFF
Input power low alert	10 to 11V
LCD back-light brightness	1 ~ 100 steps

- Operating software

Every operating program in the unit is controlled with mutual links and communications to prevent every possible error, so it introduces the maximum safety, such as input voltage warning, reverse polarity protection and Lithium cell-count input error warning.

- High-power and high-performance circuit

B610A employs the circuit that has maximum output power of 200Watts. As a result, it can charge or discharge up to 18 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 10A. Furthermore, the cooling system is so efficient that can hold such a power without any trouble of running the circuit or the operating program.

- Individual voltage balancer for Lithium batteries inside

B610A has an individual-cell-voltage balancer inside. So it does not need any balancer separately when charging Lithium batteries (LiIo/LiPo/LiFe) for cell voltage balancing

** When the 'Balance charge' mode being performed, the balancing adapter should be connected to the balancing tab of battery pack, as well as the charger's charging lead should be connected to the output of battery pack.

And also, please pay attention to the polarity of the battery pack's output which goes to the charger's output. If it is reversed, the short-circuit can be happened on the battery pack.

- Accept various types of Lithium battery

BC8 can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different characteristics by their chemistry. You can select any one of them that you are going to process before the job.

- Lithium battery 'Fast' and 'Storage' mode

You can charge Lithium battery for special purposes. 'Fast' charge reduces the charging time of Lithium battery and 'Storage mode controls the final voltage of the battery to be suit for long time storage.

- Data store/load

For users convenience it can store maximum 10 data of different batteries. You can establish the data contains program setting of the battery to charge or discharge continually. These data can be called out at any time you need and the process can be executed without program setting.

- Cyclic charging/discharging

Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery refreshing and balancing.

- PC based analysis using USB communication

For technical expert, BC6-10 offers PC based program can analysis the characteristic of the battery by USB port. It shows a graph of voltage, current, capacity and temperature curves. It also shows the individual voltage of each cell in the Lithium battery pack.

- Back-light LCD screen

You can adjust the brightness of LCD display

- Robust outer aluminum case

High-quality aluminum case is durable and very efficient to cool out the internal heat
