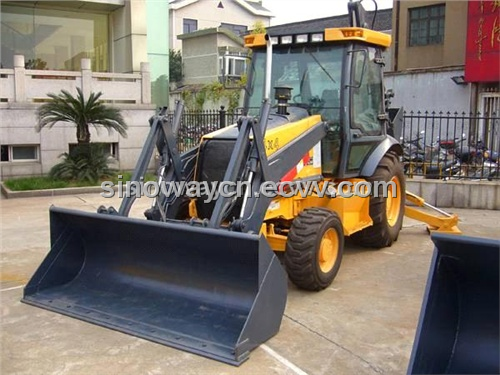

4x4 Backhoe Loader/ Front End Loader

Shipping:	Min. 7 days depends on inventory status
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East
Place of Origin:	Shanghai in China
Packaging Details:	Naked in container

Specifications

4x4 Backhoe Loader/ Front End Loader

Overall Dimension of Front End Loader:
Length (with bucket on ground)	7077(mm)
Width	2313(mm)
Load Bucket width	2328(mm)
Loader Height (To the top of the cab)	2720 (mm)
Height(To the top of the digging pole)	3424 (mm)
Wheelbase	2155.5(mm)
Back wheel Tread	1557(mm)
Fore wheel Tread	1714(mm)
Min. Ground clearance	355(mm) for 2WD 275(mm) for 4WD
Main Loading Technical Specification
Rated load	1700(Kg)
Operating weight	7000KG
Max lifting capability	>2500KG
Rated load bucket capacity	1.0(m3)
Max. Load breakout force	>40kN
Max. Dump clearance	2611(mm)
Dump reach	726(mm)
Dump angle at any position	≥43.50
Min. Turning radius
Outside of bucket	5280(mm) for 2WD 5670(mm) for 4WD
Center of front wheel	3795 (mm) for 2WD 4300(mm) for 4WD
Lifting time of loading bucket	≤5.1(sec.)
Lowering time of loading bucket	≤5.9(sec.)
Dumping time	≤0.9(sec.)
Traveling speed(Km/h),4 forward and 4 reverse
gear forward	5.8
gear forward	10.5
gear forward	20.1
gear forward	40.2
gear reverse	7.0
gear reverse	12.6
gear reverse	24.3
gear reverse	48.6
Main Digging Technical Specification
Rated digging bucket capacity	0.3(m3)
Max. Digging depth	4338(mm)
Max. Digging force	>50+10kN
Max. Digging radius	5481(mm)
Max. Dumping height	3737(mm)
Diesel engine
Model	WD Deutz WP4G95E221
Type	Direct injection. Turbocharged. Water cooling
Rated output	70(kW)
Total exhaust of cylinder	3.92(L)
Inter-bore of cylinder/stroke	102/120(mm)
Voltage of starting motor	12(V)
Rated speed	2200(r/min)
Max. Torque	360(N.M)
Starting type	Electric
Min. Specific fuel consumption	216(g/Kw.H)
Transmission System
Torque Converter
Model	CARRARO
Cooling type	Pressure oil circulating
Transmission case
Model	CARRARO
Type	Synchromesh mechanical shift
Gear shift position	4 Forward and 4 reverse gears
Axle and Tire
Model	CARRARO
Type of main reducer	spiral bevel gear, single stage
Type of final reducer	Single stage planetary
Max. Steering angle	55°
Tire type	4WD front tire12-16.5NHS-10PR 2WD front tire 11L-16F3-12PR 4WD and 2WD Rear tie 19.5L-24R4-12PR
Working Device Hydraulic System
Model of oil pump	JHP2050AXCC
System pressure	215(kgf/cm2)
Model of load valve	ZL20DC-02
Model of excavate valve	ZL30DC-07
Steering System
Type	Front wheel Steering
Model of steering pump	JHP2050AXCC
Model of redirector	BZZ5-E160B+FKB-3022
Model of priority valve	YXL-F160L-N7
System pressure	140 (kgf/cm2)
