Sinoway Industrial (Shanghai) Co., Ltd.
China Manufacturer with main products: Road Roller, Wheel Loader, Excavator, Motor Grader, Bulldozer, Truck Crane, Mining Truck, Truck Mixer, Dump Truck, Forklift, Side Forklift... |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|
Specifications

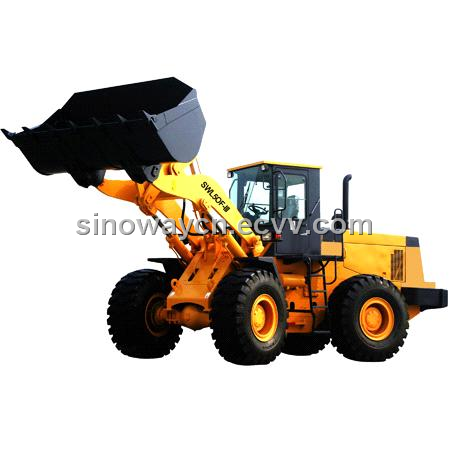

| Overall Dimension of 5-Ton Wheel Loader | ||
| Length(with bucket on ground) | 8247(mm) | |
| Width(to outside of wheels) | 2800(mm) | |
| Bucket width | 2946(mm) | |
| Height(To the top of the cab) | 3540(mm) | |
| Wheel base | 3200(mm) | |
| Tread | 2200(mm) | |
| Min. Ground clearance | 450(mm) | |
| Main Technical Specification | ||
| Rated load | 5000(Kg) | |
| Operating weight | 16400(Kg) | |
| Rated bucket capacity | 3.0(m3) | |
| Max. Breakout force | 160kN | |
| Max. Dump clearance | 3050(mm) | |
| Dump reach | 1107(mm) | |
| Dump angle at any position | ≥ 45° | |
| Digging depth(with bucket bottom horizontal) | 210 | |
| Min. Turning radius | ||
| (1) Outside of bucket | 5970(mm) | |
| (2) Outside of rear wheel | 5775(mm) | |
| Pivot angle frame | 40° | |
| Oscillating angle of rear axle | ± 12° | |
| Lifting time of bucket | ≤ 5.8(sec. ) | |
| Lowering time of bucket | ≤ 3.8(sec. ) | |
| Dumping time | ≤ 1.2(sec. ) | |
| Traveling speed(Km/h), 4 forward and 3 reverse | ||
| (1) 1st gear | 6.7/6.7 | |
| (2) 2nd gear | 12.2/12.2 | |
| (3) 3rd gear | 25.6/25.6 | |
| (4) 4th gear | 39 | |
| Diesel engine | ||
| Model | Cummins 6CT AA 8.3-C215 (TIER2) | |
| Type | Direct injection. Turbocharged. Water cooling | |
| Rated output | 160 (kW) | |
| Inter-bore of cylinder/stroke | 114/135 (mm) | |
| Total exhaust of cylinder |
|
|
| Model of starting motor | 42MT | |
| Power of start motor | 8.2(KW) | |
| Voltage of starting motor | 24(V) | |
| Rated speed | 2200(r/min) | |
| Max. Torque | 998(N. M) | |
| Starting type | Electric | |
| Min. Specific fuel consumption | 233(g/Kw. H) | |
| Engine specific oil consumption | 0.9-1.6(g/Kw. H) | |
| Net weight | 617(kg) | |
| Transmission System | ||
| Torque Converter | ||
| Model | ZF technology W G200 | |
| Type | 3-elements. Single stage | |
| Torque ratio | 2.55 | |
| Cooling type | Pressure oil circulating | |
| Transmission case | ||
| Model | ZF technology WG200 | |
| Type | power shift, spur gear constantly in mesh | |
| Gear shift position | 4 Forward and 3 reverse gears | |
| Axle and Tire | ||
| Type of main reducer | spiral bevel gear, single stage | |
| Gear ratio of main reducer | 4.556 | |
| Type of final reducer | Single stage planetary | |
| Gear of ratio of final reducer | 5 | |
| Gear ratio | 22.78 | |
| Max. Drawing force | 150kN | |
| Size of tire | 23.5-25-16PR | |
| Working Device Hydraulic System | ||
| Model of oil pump | Commercial P350-83.6+20.9 | |
| System pressure | 20MPa | |
| Model of distribution valve | HUSCO | |
| Pilot valve | HUSCO | |
| (D*L)Dimension of lifting cylinder | 160*90*740(mm) | |
| (D*L)Dimension of tilting cylinder | 180*90*500(mm) | |
| Steering System | ||
| Type | Middle articulated frame. Co-axis flow amp. Steering | |
| Model of steering pump | Commercial P330-64.6+16.1 | |
| Model of steering gear | Danfoss 150G4107 | |
| System pressure | 16MPa | |
| Dimension of steering cylinder | 90*45*435(mm) | |
| Brake System | ||
| Type of traveling brake | hydraulic | |
| Oil pressure | 55(kgf/cm2) | |
| Type of emergency brake | Automatic cutting oil hydraulic brake | |
| Type of parking brake | Inner expand hoof, Automatic boosting. Inner expand hoof | |
| Oil Capacity | ||
| Fuel(diesel) | 250(L) | |
| Engine lubricating oil | 19(L) | |
| Oil for converter and gear box | 45(L) | |
| Oil for hydraulic system | 220(L) | |
| Oil for driving axlesF/R | 37x2(L) | |
