Zhangjiagang Minghua Machinery CO.,LTD
China Manufacturer with main products: CNC Tube Benders, NC Hydraulic Tube Benders, Double-Head Tube Benders, Metal Circular Saws, Aluminum Circular Saws, Tube End-Forming Machines... |

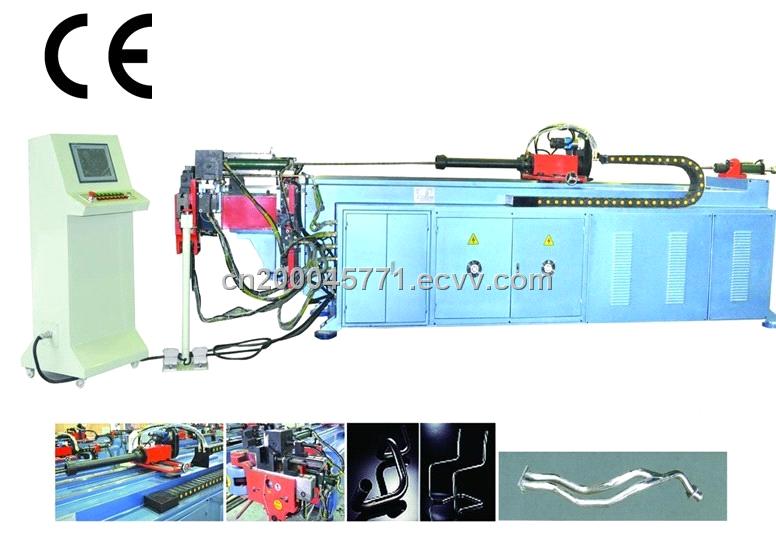

CNC Tube Bending Machine (DW50CNCX2A-2S)
| FOB Price: | 30000.00 - 50000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
Related products from verified members
| Place of Origin: | Jiangsu in China |
|---|---|
| Packaging Details: | Iron case |
Specifications
| Specification/Model | 1. DW50CNCX2A-1S 2. DW50CNCX3A-2S |
Remark | |
| Max bending capability | Φ50mm×3mm |
1. The Minimum bending diameter based onthe pipe diameter 2.The Max bending diameter can accordingto the customers' requirements 3.The Max length of mandrel can according to customers' requirements | |
| Max bending radius | R250mm | ||
| Min bending radius | R20mm | ||
| Max bending angle | 190° | ||
| Max feeding length | 2600mm | ||
| feeding method | direct feeding clamping feeding | ||
| Working speed | Bending speed | Max 85°/s | |
| Rotary speed |
Max 200°/s | ||
| Feeding speed | Max 1000mm/s | ||
| Working accuracy | Bending accuracy | ±0.1° | |
| Rotary accuracy | ±0.1° | ||
| Feeding accuracy | ±0.1mm | ||
| Information inputting method | 1. axis（X . Y. Z） 2.working value（Y. B. C） | ||
| Bending method |
1.Servo bending : 1kw(more than 3 axis 2. Hydraulic bending | ||
| Power of rotary servo motor | 750w | ||
| Power of feeding servo motor |
1kw | ||
| Max bending groups | 1.12 2.33 | ||
| Max storing components |
1.330 2.125 | ||
| Motor power | 7.5kw | ||
| Oil pressure |
12 Mpa | ||
| Size | 4900 x 1300 x 1300mm | ||
| Weight | 2500kg | ||
