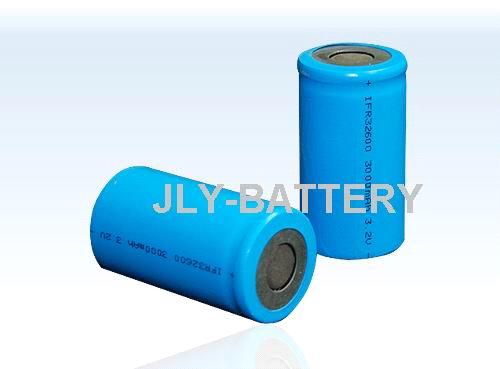

LiFePO4 Batteries (IFR32600)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

IFR32600P 3000mAh 3.2V & IFR32600e 3500mAh 3.2V

Model		IFR32600P	IFR32600e
Nominal Voltage	(V)	3.2	3.2
Nominal Capacity	(Ah)	3	3.5
Internal Resistance	(MΩ)	≤20+10	≤20+10
Discharge Cut off Voltage	(V)	2	2
Standard Charge Voltage	(V)	3.65±0.05	3.65±0.05
Max. Charge Voltage	(V)	4.195	4.195
Standard Charge current	(A)	3	3.5
Quick Charge Current	(A)	4.5	5.25
Max. Continuous Discharge Current	(A)	45	17.5
Max. Instant Discharge Current	(A)	60	28
Dimensions	(mm)	Φ32.5±0.1 × H60.0±0.6	Φ32.5±0.1 × H60.0±0.6
Weight Approx	(g)	125	125

Remark:

Model P represents power type battery \ instant discharge 20C-25C\ continuous discharge 10C-15C

Model E represents capacity type battery \ instant discharge 5C-8C\ continuous discharge 2C-4C
