Shanghai HJ Fiber Co., Ltd.
China Manufacturer with main products: fiber patch cord, DWDM |
Hybid Adapter
| Shipping: | 7 days |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Specifications
We, Shanghai HJ Fiber Co., Ltd. guarantee the High quality (Rohs, ISO9001,) , competitive price and delivery on time service to our customers. Our products shown below: Isolator, Coupler, Circulator, WDM, CWDM, OADM, DWDM, MWDM, Hybrid Components for EDFA, Switches , PM Products, 1064nm Products, Faraday Mirror , Collimator, Pigtail, Jumper , Patch Cord, VOA, Attenuator, WDM Filter,Single Frequency Diode Laser ,Fiber Fusion Splicer,Fiber Cleaver ,10/100/1000M Ethernet Media Converter,Fast Ethernet Switch ,For more details , please visit our website: www.fibersworld.com
Optical Fiber Adaptor is used for the connection and coupling between fiber active connectors.Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.
Applications:
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fibre Optical Wall Mount and Rack Mount Cabinets
Features:
Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fibre Optical Wall Mount and Rack Mount Cabinets
Features:
Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Description:
FC/SC/ST/LC/D4/DIN/SMA/E2000
Singlemode/Multimode
Simplex/Duplex
Ceramic/Bronze sleeve
Plastic/Metal
Hybrid/Diecasting or fixed
Singlemode/Multimode
Simplex/Duplex
Ceramic/Bronze sleeve
Plastic/Metal
Hybrid/Diecasting or fixed

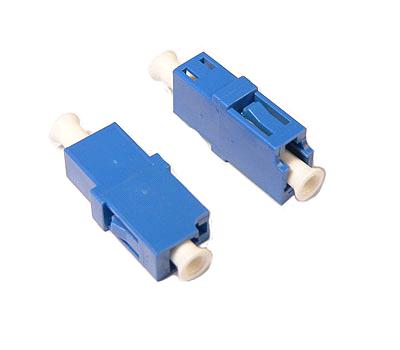

1. LC Specification
Insertion Loss: ≤0.20 dB
Withdrawal Force (g/f): 100 - 300
Durability (1000 Mating): 0.2 dB max increase
Operating Temperature: -40C to + 85C
2. SC Specifications:
SC/PC Simplex Adapter
SC/PC Duplex Adapter
SC/APC Simplex Adapter
SC/APC Duplex Adapter
SC Adapter Specification Insertion Loss: ≤0.20 dB
Withdrawal Force (g/f): 200 - 600
Durability (1000 Mating): 0.2 dB max increase
Operating Temperature: -40C to +75C
3. ST Specifications:
Metal Body
Solid Type Adapter
Rectangular Type Adapter
Square Type Adapter
ST Adaptor Specification Insertion Loss: ≤0.2 dB
Withdrawal Force (g/f): 200 - 600
Durability (1000 Mating): 0.2 dB max increase
Operating Temperature: -40 to +75C
4. FC Specifications
Solid Type Adapter
Rectangular Type Adapter
Square Type Adapter
Metal Body
Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type
FC Adapter Specification Insertion Loss: ≤0.2 dB
Withdrawal Force (g/f): 200 - 600
Durability (1000 Mating): 0.2 dB max increase
Operating Temperature: -40 to +75C
5. MU Specifications
Small Form Factor (SFF)
High performance and reliability
Meet NTT MU standard
Polarized
MU Adapter Specification Insertion Loss: ≤0.2 dB
Withdrawal Force (g/f): 100 - 300
Durability (1000 Mating): 0.2 dB max increase
Operating Temperature: -40 to +85C
For more details , pls contact us without hesitation, we will give your satisfied reply asap.
Kindly look forward to hearing from you side.
