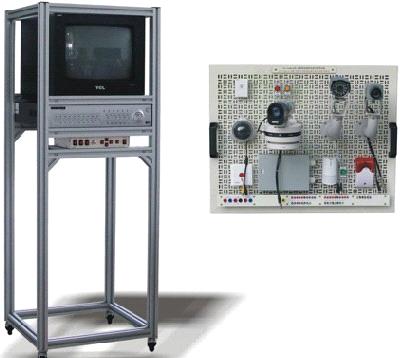

Cable TV Monitor & External Protection Module

FOB Price:

In Stock

Inquiry Now

Product Details

Place of Origin:	Zhejiang in China

Specifications

* lens: 6mm

* automatic aperture lens: 12mm

* manual lens: 3.5~8mm

* electric lens: 6~36mm

* color camera: 1/4″SONY color CCD, 420 TV cable

* color camera: 1/4″SHARP color CCD, 420 TV cable

* B/W digital camera: 1/3″SONY color CCD,600 TV cable

* Color digital camera: 1/3″SONY color CCD,480 TV cable.

* indoors universal: rotation angle: horizontal 0°~350°, vertical +10°~-60°; rotation speed: horizontal ≥6.2°/s, vertical ≥4.3°/s; maximum torque: horizontal 18.8kg.cn, vertical: 26.8kg.cm;

* Decoder: RS485; control; 2 auxiliary switches, for lighting, rain wiper control.

* Controller: operation mode: manual/automatic; control range: aperture/ variable focus.

* hard disc video recorder: 4-channel BNC video input; 1-channel BNC video output;4-channel BNCaudioinput;1-channel BNC audio output; 16-channel alarm NC/NO input; 4-channel NC/NO alarm output; file record: timed video record, manual video record, movable detect video record, alarm video record, movable detection video record& alarm video record; support monitor or VGA output; local alarm, interlink, alarm time meter, alarm interlink; remote control; flexible safety management; manual/automatic control; lens control; lamp and rain wiper control.

* Hard disc: 80G, 7200r/min.

* monitor: 14” color kinescope; 500-line resolution; 2-channel BNC video input; 2-channel BNC video output; 2-channel BNC audio input; 2-channel BNC audio output.

* Other equipment: emergency button, theft-proof detector, optical alarm.

Projects

* Various equipments, cables learning and comparison.

* Various lens installation and debugging.

* Half-digital hard disc video recorder wiring, settings and operation.

* Monitor wiring, settings and operation.

* Indoors universal, decoder and controller wiring and operation.

* Detector, optical alarm installation and debugging.

* Monitor system and alarm system interlink control.
