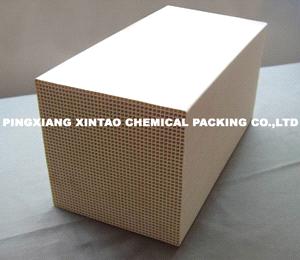

Xintao Honeycomb Ceramic

Supply Ability:	5,000 Ton per Year
Shipping:	1 week for 20
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Product Details

Place of Origin:	Jiangxi in China
Packaging Details:	bulk bag

Specifications

Honeycomb ceramics are a new kind of industrial ceramic product developed in recent years. They have a large surface area, higher air vent rate, good heat functions, stable chemical properties etc. At present, ceramic honeycombs are being used to purify industrial waste gas, automobile emissions, eliminate noise, deal with waste water, to dry air, incineration, used in the manufacture of infrared ray instruments, to filter metal liquids etc. All ceramic honeycombs can be produced in conformance with customer requests.

Chemical composition

SiO₂	Al₂O₃	MgO	Fe₂O₃	Na₂O	K₂O
48-51%	31-34%	14-16%	<0.5%	<0.5%	<0.5%

Physical properties

Index	Value
Cordierite gross density(g/cm³)	1.9-2.0
Average linear expansion(20-1000) (10^-6/k^-1)	<2
Specific heat capacity(KJ/Kg)	830-900
Temperature cycle resistance(K)	300
Max operation Temp.(Degree C)	1300
Thermal shock resistance(Degree C)	800
Acid resistance(%)	>99
Alkali resistance(%)	>85
Water absorption(Wt%)	22±5

Technical data

Spec.	Quantity of channels	Wall thickness (mm)	Surface area (m²/m³)	Free volume (%)	Average weight (min.) (kg/m³)
150150300	60*60	0.5	1315	70	680
150150300	50*50	0.7	1050	58	680
150150300	40*40	0.7	883	65	518
150150300	25*25	1.0	573	67	502

Application

Used in the petroleum chemical engineering, garbage incineration, coating and paints chartered plane, also applied in the industry waster gas and waste water processing etc.
