Shenzhen Yunao Electronics Co., Ltd.
China Manufacturer with main products: LED Strips, LED Module, SMD Module, LED, SMD, LED Fluorescent Tube, LED Point Lights, LED Greatwall Lights |
SMD5050 Module
| Shipping: | within 15 days |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Shenzhen in China |
|---|
Specifications

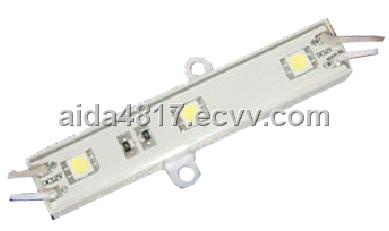

Item Name: 5050-3pcs
Model No.: LA-MAX005C
Products: SMD modules
1. Model:LA-MAX005C
2. Specification:
(1) led type:SMD5050
(2) led quantity:3pcs
(3) Colour available:red/green/blue/yellow/white/cool white
(4) Viewing angle(2θ1/2): ≥120°
(5) Luminous flux:(lm):red:2.2, green:6,blue:1.8,yellow:2,pure white:12,cool white:12.
(6) Wavelength range:nm or Kred619～635; green:512～528; blue:463～475;yellow:580～590; pure white55006500; cool white900011000
(7) Working voltage:DC12V
(8) Power:0.24W
(9) Driving mode:constant
(10) Connection wire:UL1007 20grey and white,100mm long.Grey for positive,white for negative.
(11) Standard connection:20pcs,end to end.
(12) Housing material:Antistatic ABSUV resistant
(13) Size: 78*15*7.0mm
(14) Color of housing:white
(15) Back glue: 12*40*1.1mm,green foam double sided glue.
(16) Woring temperature:4060
(17) Store temperature: 5080
(18) IP level:IP33
(19) Life span: >50000 H
(20) Net weight: 11±10g
(21) Packing:Aluminium and foil bag(Vacuum)
