Shanghai Pripack Machiner Co., Ltd.
China Manufacturer with main products: Printing Machines, Packaging Machines |

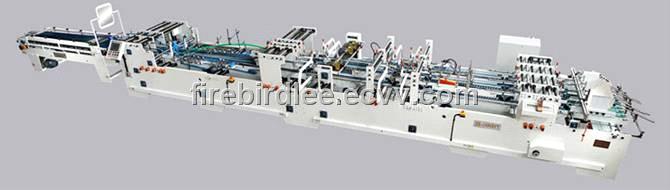

4&6-Corner Folder Gluer
| FOB Price: | 50000.00 - 75000.00 USD/Set |
|---|---|
| Shipping: | 45-60days |
| Payment Terms: | L/C |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|
Specifications
1. This machine is adopted with electric vibrating system for paper pile, for coveyer paper more smooth and steady.
2. In the long distance folding part, the first fold and the third fold can be changed over by 180°, 135°
3. Adopted with Japanese imported servo system for 4& 6 corner folding
4. Servo system set up by touch screen, it's easy regulate
5. It is adopted with Japanese OMRON encoder, which exact to testing and adjust tun-over hook speed
6. Upper gluer tank has standard with American vaclo glue spraying system (three gun, two sensor)
Optional: Germany HHS glue spraying system.
7. Transmission section adopted with pneumatic pressure regulator
8. Optional: low-temperature plasma treatment equipment, to meet the various degree of overlap carton
9. It is adopted with Japanese (NITA) belts.
Technical Parameters
|
Model |
Max. Speed |
Power |
Overall Dimension |
Total Weight |
|
ZH-1200BFT |
220 m/min |
8. 5kw |
11×1. 3×1. 4m |
3. 8T |
|
ZH-1400BFT |
200 m/min |
9kw |
12. 1×1. 5×1. 6m |
4. 8T |
|
ZH-1600BFT |
180 m/min |
17. 2 KW |
13. 8×2. 1×1. 6m |
8. 4T |
STANDARD EQUIPMENT
1. Whole machine
1 electric box with electric elements and central control system
1 set inverter controlled vary speed system
2 sets stageless vary speed system
2 sets electrical stageless vary speed system
1 set stopping system when delivery disturbed
1 operation box
2. Feeding device
max feeding pile height of 250mm
8 25mm wide belt and inside mechanical vibrator
2 front supporting guide
4 sets pressing wheels
2 sets side guide
1 counter
3. Prefolding device
1 set operation side prefolding unit
1 set driving side prefolding unit
4 convection belt
4. Lock bottom device
3 upper convection belt
3 lower convection belt
4 set appendix for bottom locking
5. Mechanical gluing device
2 wheels for surface gluing
2 set operation side lower gluing unit
6. Gluing device
2 upper pressing belt
2 lower convection belt
2 folding belt with antidepart function
7. Pressing device
2 upper pressing belt
2 lower convection belt
2 sets micro adjustable pressing unit
8. Delivery device
pressure adjustable delivery
9. Optional
blower gluing system for cold/hot melt glue
-
Machine Spare Part
|
ORIGIN |
ITEM NAME |
ITEM NO. |
QTY |
REMARK |
|
SCHNEIDER
Germany |
Air switch |
OSMC32N1C10 |
1 |
1P 10A |
|
AC Contactor |
LCI-D1810 M7N |
2 |
32A 220V | |
|
LCI-D50 M7N |
1 |
50A 220V | ||
|
Press botton |
XB2 EA131 |
30 |
||
|
MEANWELL
Taiwan |
Power switch |
S-35-24 |
1 |
1. 5A |
|
S-50-24 |
1 |
2. 1A | ||
|
Weidmvller |
Contact terminal |
SAK 6/EN |
100 |
6㎡ |
|
Mennekes |
Plug |
16A-6h |
1 |
16A |
|
Socket |
16A-6h |
1 |
16A | |
|
SIBAS |
Aviation plug-in |
HDC-HDD-042 |
3 |
42 |
|
NITA Japan |
Belts |
|||
|
VOCLO American |
Glue system |
It’s cold glue system, have 3guns | ||
|
YASKAWA Japan |
Servo motor |
|||
|
SIEMENS Germany |
PLC |
1 |
||
|
Taiwan |
Wireless remote control |
|||
|
Shanghai |
Switch |
LW39-16B-6A3/2 |
1 |
16A |
Spare part of machine, engine is Siemens, electrical is Schneider, belts is adopted with Japanese(NITA), transducer is adopted with Taiwan, Machinery control with PVC, it is automatic timing, steady running and easy maintaenance.
STANDARD EQUIPMENT
1. Whole machine
1 electric box with electric elements and central control system
1 set inverter controlled vary speed system
2 sets stageless vary speed system
2 sets electrical stageless vary speed system
1 set stopping system when delivery disturbed
1 operation box
2. Feeding device
max feeding pile height of 250mm
8 25mm wide belt and inside mechanical vibrator
2 front supporting guide
4 sets pressing wheels
2 sets side guide
1 counter
3. Prefolding device
1 set operation side prefolding unit
1 set driving side prefolding unit
4 convection belt
4. Lock bottom device
3 upper convection belt
3 lower convection belt
4 set appendix for bottom locking
5. Mechanical gluing device
2 wheels for surface gluing
2 set operation side lower gluing unit
6. Gluing device
2 upper pressing belt
2 lower convection belt
2 folding belt with antidepart function
7. Pressing device
2 upper pressing belt
2 lower convection belt
2 sets micro adjustable pressing unit
8. Delivery device
pressure adjustable delivery
9. Optional
blower gluing system for cold/hot melt glue
-
Machine Spare Part
|
ORIGIN |
ITEM NAME |
ITEM NO. |
QTY |
REMARK |
|
SCHNEIDER
Germany |
Air switch |
OSMC32N1C10 |
1 |
1P 10A |
|
AC Contactor |
LCI-D1810 M7N |
2 |
32A 220V | |
|
LCI-D50 M7N |
1 |
50A 220V | ||
|
Press botton |
XB2 EA131 |
30 |
||
|
MEANWELL
Taiwan |
Power switch |
S-35-24 |
1 |
1. 5A |
|
S-50-24 |
1 |
2. 1A | ||
|
Weidmvller |
Contact terminal |
SAK 6/EN |
100 |
6㎡ |
|
Mennekes |
Plug |
16A-6h |
1 |
16A |
|
Socket |
16A-6h |
1 |
16A | |
|
SIBAS |
Aviation plug-in |
HDC-HDD-042 |
3 |
42 |
|
NITA Japan |
Belts |
|||
|
VOCLO American |
Glue system |
It’s cold glue system, have 3guns | ||
|
YASKAWA Japan |
Servo motor |
|||
|
SIEMENS Germany |
PLC |
1 |
||
|
Taiwan |
Wireless remote control |
|||
|
Shanghai |
Switch |
LW39-16B-6A3/2 |
1 |
16A |
Spare part of machine, engine is Siemens, electrical is Schneider, belts is adopted with Japanese(NITA), transducer is adopted with Taiwan, Machinery control with PVC, it is automatic timing, steady running and easy maintaenance.
