Jinan Sunny Machinery Co., Ltd.
China Manufacturer with main products: Insulating Glass Machine, Double Glazing Glass Machine, Automatic CNC Glass Cutting Machine, Semi-Automatic Glass Cutting Machine, Glass... |
Home
>Products Catalog > Vertical Insulating Glass Production Line > Double Glaze Machinery - Double Glazing Production lIne

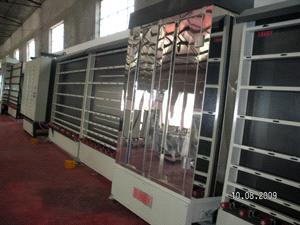

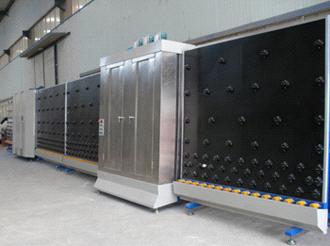

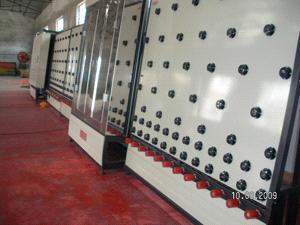

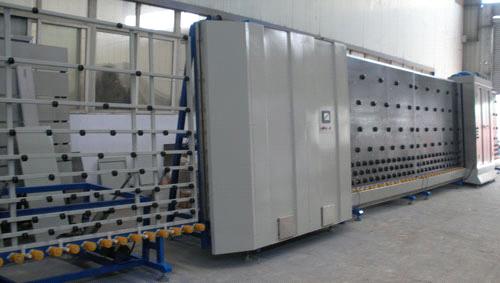

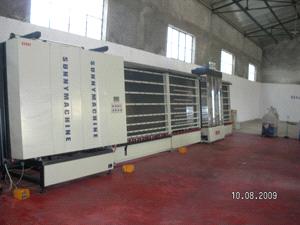

Double Glaze Machinery - Double Glazing Production lIne
| FOB Price: | 10,000.00 - 38,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 20 Days after getting first payment |
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Wooden Package |
Specifications
LBZ2500 Vertical Insulating Glass Automatic Flat Press Production Line
Functions characteristics
Shape glass LOW-E insulating glass production line
Automatic control for LOW-E glass (3-brush treatment for LOW-E)
Automatic adjust function for pressing with hydraulic compression
Titling table with hydraulic pressure
Monitor using system temperature/speed/production volume
Mechanical trouble cheek
Whole line control function with 1 monitor
Technique parameter
Max. glass size: 2500×3000mm
Min. glass size: 300×500mm
Thickness of Washing Glass: 3-12mm
Max.Insulating Glass Thickness: UP TO 50mm
Max.in washing section: 12m/min
Max.in accelerating: 50m/min
Brush: 3 pair(LOW-E)
Power voltage: 3p 41.5kw(380V)/50-60Hz
Size of line: 22000×1560×3380mm
Power rate: 20.24KW
