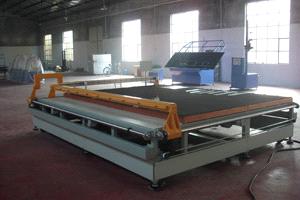

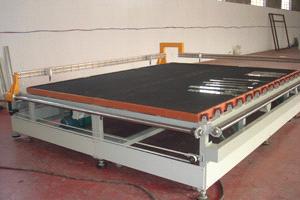

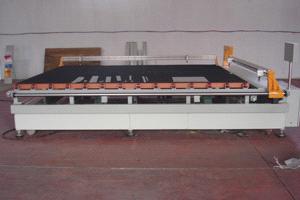

YG-3725 Semi-automatic Glass Cutting Machine

FOB Price: 8000.00 - 12000.00 USD/Set
Supply Ability: 20 Set/Sets per Month
Shipping: 20 Days after getting first payment
Payment Terms: L/C, T/T(Bank Transfer), Western Union
In Stock
Place of Origin: Shandong in China
Packaging Details: Wooden Package

Specifications

1) Instruction and Technical Data

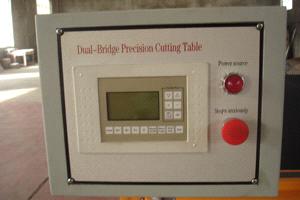

The semi-automatic, dual bridge precision cutting table is improved by using gear-drive equipment and the automatic stop function, making it necessary to manually pull the two beams. By pressing the starter on the control panel, the cutting would be automatically done by the gear-drive equipment. High efficiency and easy operation to cut with multiple cutters. Self-lubricating cutter holders, easy to replace cutter wheel, high precision, long lifespan and attractive appearance. The smooth, easy operation reduces the intensity of labor and improves production efficiency. Finished cutting, the double beams automatically returned. Machine has blowing and suction function.

Max Cutting Size (mm)                 3660*2600mm
Min Cutting Size (mm)           20*20mm
Cutting Accuracy (mm/m)             ≤ ±0.15
Glass Cutting Thickness(mm)          1~19
Voltage (V)                                220V/50Hz
Overall Dimension (LWH) (mm)              4160x3350x1450mm
2) Configuration
Electrical Parts: Schneider made in France
(Such as contactors, overtemperature reply, etc)
Stepping Motor and Drivers: made in China
High-speed Linear Guide: made in Taiwan
Fan: made in China

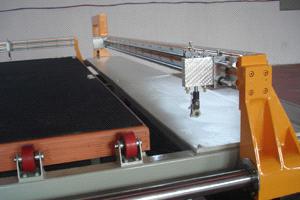

Cutter Box: made in China (The pressure of cutter box is adjustable)
Tough Screen: Made in Taiwan.
