Foshan Techfine Electronic Co., Ltd.
China Manufacturer with main products: UPS, Inverter, Battery |

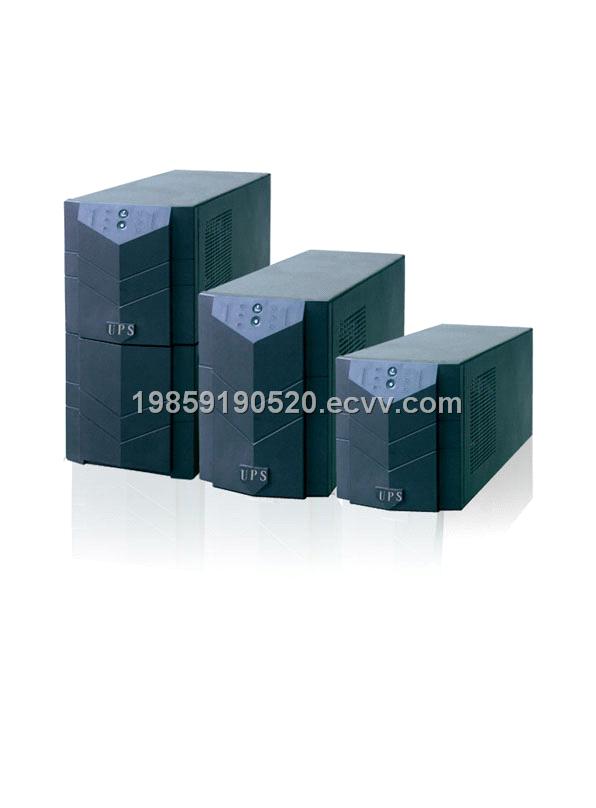

Line Interactive UPS
| FOB Price: | 63.00 - 385.00 USD/Piece |
|---|---|
| Supply Ability: | 30,000 Piece/Pieces per Month |
| Shipping: | Delivery time:within 20-25 days after received T/T advanced |
| Payment Terms: | T/T(Bank Transfer), 30% T/T payment in advance, the balance payment be |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
Capacity：1KVA-5KVA
System Features：
a. Matched by multiple loads
b. High efficiency
c. Have monitor software
Technical Specification
System Features：
a. Matched by multiple loads
b. High efficiency
c. Have monitor software
| UPS | 750VA | 1000VA | 1500VA | 2200VA | 3000VA | ||||
| Input Voltage range | 180-280±5Vac / 90-140±3Vac | ||||||||
| Output voltage range | （220/230/240）±2% / ( 110/120/130)±2%( utility power mode) 192-253Vac / 100-125V (battery mode) | ||||||||
| Input protection | Circuit breaker | ||||||||
| Input frequency | 50Hz/60Hz±3Hz | ||||||||
| Transfer time | Less than 4ms | ||||||||
| Power factor | 750VA 525W | 1000VA 700W |
1500VA 1050W |
2200VA 1540W | 3000VA 2100W | ||||
| Battery mode wave | Sine wave | ||||||||
| Battery mode output frequency | 50Hz/60Hz±0.5Hz | ||||||||
| Protections | Overload ,short circuit ,battery voltage | ||||||||
| DC voltage | 24V | 24V | 24V | 48V | 48V | ||||
| Battery type | 12V 7AH | 12V 12AH | 12V 17AH | 12V 17AH | 12V 17AH | ||||
| Charging time | 3-8 hours |
8hours |
12hours | 12hours | |||||
| Discharging time | Full load | 5 minutes | 6 minutes |
10-15 minutes |
20-25 minutes | 12-15 minutes | |||
| Half load | 15 minutes | 18 minutes |
20-25 minutes |
40-50 minutes | 24-30 minutes | ||||
| Communication port | RS232/ DRY CONTACT | ||||||||
| Working temperature | 0∽40℃ | ||||||||
| Storage temperature | -15℃∽+45℃ | ||||||||
| L*W*H(cm) | 54.5*25.5*35.5 | 61*33*29 | 61*33*29 | 76*38*66 | 76*38*66 | ||||
| Weights(kg) | 12 | 23 | 26 | 56 | 66 | ||||
Long time type:
| UPS | 1000VAL | 2200VAL | 3000VAL | 5000VAL | ||
| Input voltage range | 180-280±5Vac / 90-140±3Vac | |||||
| Output voltage range | （220/230/240）±2% / ( 110/120/130)±2%( utility power mode) 192-253Vac / 100-125V (battery mode) | |||||
| Input protection | Circuit breaker | |||||
| Input frequency | 50Hz/60Hz±3Hz | |||||
| Transfer time | Less than 4ms | |||||
| Power factor | 1000VA 700W | 2200VA 1540W | 3000VA 2100W |
5000VA 3750W | ||
| Battery mode wave | Sine wave | |||||
| Battery mode output frequency | 50Hz/60Hz±0.5Hz | |||||
| Protections | Overload ,short circuit ,battery voltage | |||||
| DC voltage | 24V |
48V |
48V | 48V | ||
| Battery type | External batteries | |||||
| Charging time | ≥24 hours(concerned with battery capacity) | |||||
| Discharging time | Full load | concerned with battery capacity and quantity | ||||
| Half load | ||||||
| Communication port | RS232/ DRY CONTACT | |||||
| Working temperature | 0∽40℃ | |||||
| Storage temperature | -15℃∽+45℃ | |||||
| L*W*H(cm) | 61*33*29 | 76*38*66 | 76*38*66 | 76*38*66 | ||
| Weights(kg) | 17 | 38 | 43 | 68 | ||
