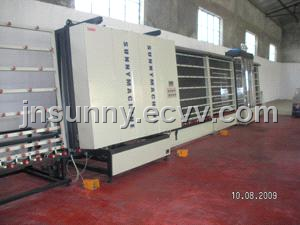

Vertical IG Production Line (LBZ2500 )

FOB Price: 38,000.00 USD/Set
Supply Ability: 10 Set/Sets per Month
Shipping: 20 Days After Geting First Payment
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: Wooden Package

Specifications

LBZ2500Vertical Insulating Glass Automatic Flat Press Production Line
Functions characteristics
Shape glass LOW-E insulating glass production line
Automatic control for LOW-E glass (3-brush treatment for LOW-E)
Automatic adjust function for pressing with hydraulic compression
Titling table with hydraulic pressure
Monitor using system temperature/speed/production volume
Mechanical trouble cheek
Whole line control function with 1 monitor
Technique parameter
Max. glass size :                                      2500×3000mm
Min. glass size  :                                      300×500mm
Thickness of Washing Glass:                    3-12mm
Max.Insulating Glass Thickness :              UP TO 50mm
Max.in washing section :                          12m/min
Max.in accelerating  :                               50m/min
Brush  :                                                   3 pair(LOW-E)
Power voltage :                                       3p 41.5kw(380V)/50-60Hz
Size of line :                                            22000×1560×3380mm
Power rate :                                            20.24kw
