3.5" TFT LCD Module Touch Screen Selectable

FOB Price:	1.00 - 20.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	2 WEEKS
Payment Terms:	L/C, T/T(Bank Transfer), Western Union, PayPal

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Fujian in China

Specifications

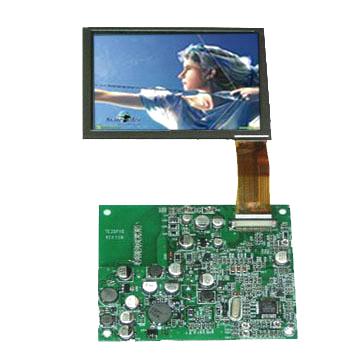

Product Name:3.5"Digital TFT LCD Module

Model:T035ST12-F01, 02

Backlight:LED

Resolution of Pixel:320 x 3(RGB) x 240

View angle:U/D/L/R50/55/60/60

Brightness:250 cd/m²

Signal Input:VIDEO, VGA

Power Supply: DC+12V (9-15V) +12V 110mA

Panel display dimension(mm):70.08H×52.56V

Panel Overall dimension(mm):76.9W×63.9H×3.3D

PCB Structural dimension(mm):80.0W×67.1H×15.5D

Working temperature:-10~+60

Environment relative Humidity:5~95% RH

Storage temperature:-20~+70
