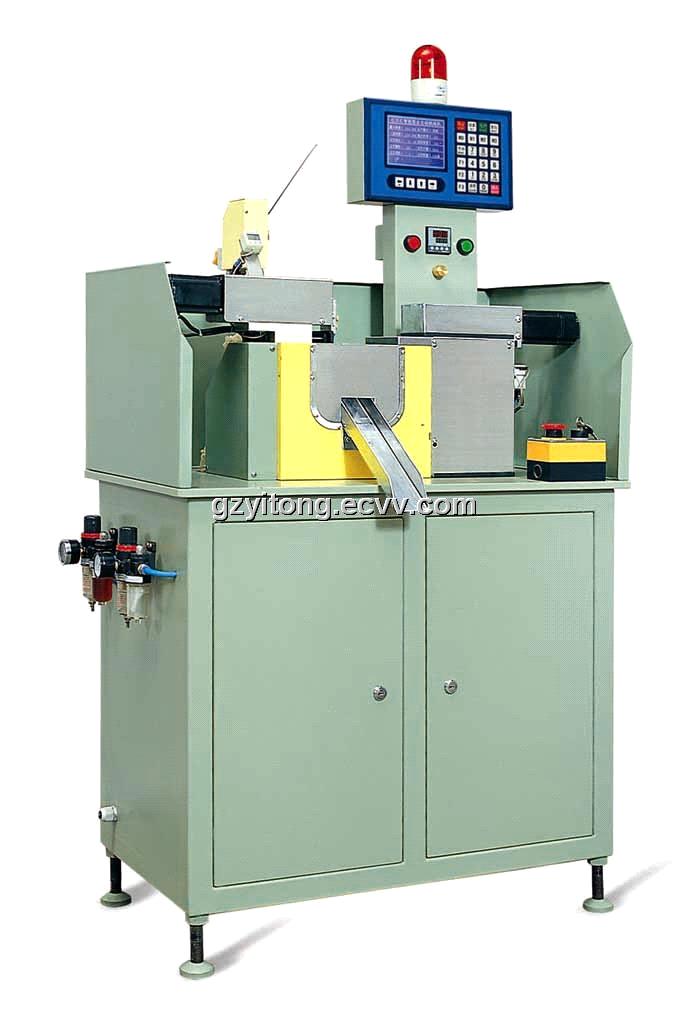

CNC Automotive Coil-Winding Machine

Supply Ability:	30 Set/Sets per Month
Shipping:	25-30 days
Payment Terms:	T/T(Bank Transfer), Western Union

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	wooden packaging

Specifications

CNC Automotive Coil-winding Machine with high exactness

Technology details:

Axis: 2 axis (X.Y)
Maximum speed of motor: 4,000rpm
Stop angle: ±0.1°
Available wire diameter: 0.02 to 0.50mm
Coil diameter: 20mm
Precision of coil diameter: 0.001mm
Precision of two wires: 0.0001mm
Temperature control (automotive): ±2° (maximum to 600°)
Power: 220V AC
Pneumatic pressure: 32kg/sq.inch
Dimensions: 800 x 450 x 1,500mm
Weight: 200kg

Coil-winding method:

Auto-stop device by no wire feed or wire cut-off

Auto-stop device by no tape feed or tape cut-off

Easy and quick to adjust tool according stack height of stator

P.S.:If you need more infromation, please call us or contact Guangzhou Yitong NC. CO., LTD
