| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Fumigating wooden package |
Specifications

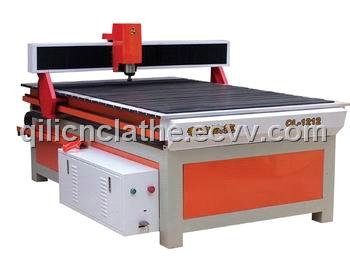

Advertising CNC Router QL-1212
Details:
1, Germany-High-precision ball screws Preload Consumers gap, movement to reduce gap to min.
2, 4 imports Pai ball linear guides, self-lubricating block so that the direction of force equal to ensure mechanical precision and intensity.
3, breakpoint memory, guaranteed in the accident (Duandao) or next day, under processing.
4, a number of workpiece machining unique way to preserve the original point.
5, gantry movement, strengthen the surface, sturdiness and durability, prolonged use of distortion, so that more precise positioning accuracy.
6, not only cut signs without serrated carving fine,smooth contours clear bottom,also cut 2 cm plexiglass ease.
7, the channel bed and casting bed for election
Appliable Fields:
1, stone crafts, make relief, scrupture,big statue,pottery and porcelain decration,etc.
2.advertising industry: advertising signs,acrylic brands,calligraphy,3D characters,garden or wall decoration,logo, acrylic cutting, billboard, characters cutting, plate,LED/neon channel, literal-hole cut,Lightbox mold, stamp,mould.
3, die industry:sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, others: large-scale relief sculpture, video carving,craft and gift, widely used for gifts.
Capacity:
|
1 |
X.Y working area |
1200*1200mm |
|
2 |
Z working area |
>100mm |
|
3 |
Table |
1300*1420mm |
|
4 |
Speed |
5m-6m/min |
|
5 |
working speed |
2m-3m/min |
|
6 |
feeding height |
110mm |
|
7 |
Working delicacy |
0.005mm |
|
8 |
Repositioning accuracy |
0.05mm |
|
9 |
Command |
G code*.u00*.mmg*.plt |
|
10 |
Surroundings for software |
windows98/2000/xp |
|
11 |
Power (spindle excluded) |
400w |
|
13 |
Working voltage |
AC220V/50Hz |
|
14 |
Spindle power |
1.5kw |
|
15 |
Spindle rotating speed |
0-24000rpm/min |
|
16 |
Drive motor |
Steper |
|
17 |
Package size and Weight |
184*175*142cm (400KG) |
