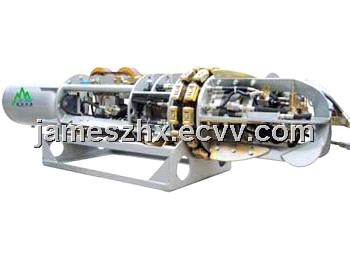

Piping Internal Pneumatic Pipe Line-Up Clamp

FOB Price:	50,000.00 - 80,000.00 USD/Piece
Supply Ability:	10 Piece/Pieces per Month
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Specifications

Piping Internal Pneumatic Pipe Line-Up Clamp

Model: PPLUC-18A/22A/26A/32A/36A/40A/44A/48A/52A/56A

Technical Parameters 1. Applicable pipe diameter: φ 406-457/φ 508-559/φ 610-660/φ 711-813/φ 813-914/φ 914-1016/φ 1067-1118/φ 1168-1219/φ 1219-1320/φ 1320-1420 2. Press amount: 10*2/10*2/12*2/12*2/12*2/18*2/12*2/24*2/24*2/30*2/ 3. Support force: 8.5T/ 150T/ 183T/ 270T/ 270T/ 450T/270T/ 650T/ 650T/650T/ 4. Driving system: Driving by motor, single side single wheel(18A-36A)/ single side two wheels(40A-56A) 5. Braking system: Single side single brake(18A-36A)/ Three sides double brakes(40A-56A) 6. Overall dimension: φ 360*1800/φ 470*2200/φ 550*2700/φ 650*2900/φ 750*2900/φ 815*3100/φ 1000*3700/φ 1100*4100/φ 1170*4200/ φ 1270*4200 7. Total weight: 290Kg/430Kg/550Kg/700Kg/860Kg/1100Kg/1500Kg/1800Kg/2100Kg/2200Kg/
