Home >Products Catalog > Stone Quarry equipment > Diamond Wire Saw Cutting Machine for Granite Quarry 55kw

Diamond Wire Saw Cutting Machine for Granite Quarry 55kw

Supply Ability:	500 Set(s) per Month
Shipping:	by Ocean
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Polywood package

Quick Details

After-sales Service Provided: Overseas service center available
Certification: CE
Weight: 2500KGS
Brand Name: HD
Condition: New
Warranty: six month warranty
Power(W): 55kw
Voltage: 380v
Production Capacity: 500 Set per month
Use: Granite
Type: Stone Cutting Machine

Specifications

Product Details:

Place of Origin	Fujian, China (Mainland)
Brand Name	HD
Model Number	DWS
Condition	New
Main motor	22kw-75kw
Color	Yellow
Quarrying material	Marble.Granite

Payment & Shipping Terms:

Price:	Get Latest Price
Minimum Order Quantity:	Negotiable
Minimum Order Quantity:	1 Set/Sets
Port:	Xiamen
Packaging Details:	Reinforced wooden box
Delivery Time:	15-30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	20 Set/Sets per Month

Detailed Product Description

1 mainly used for marble and granite block quarrying
2 low noise,high efficiency,long lifespan
3 excellent after sale service

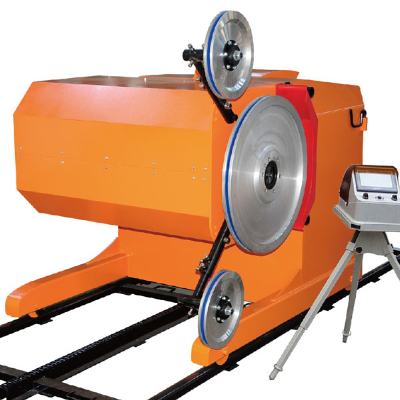

Standard Type Wire Saw Machine for Quarry

Variable speed Wire Saw Machine, with electric controlled inverter that allows a variable linear speed of the wire 0m/s-40 m/s for marble cutting and 0m/s-30m/s for granite cutting, suitable for any quality or hardness of quarries, such as marble, granite, sandstone etc. Also available for bridge, reinforced concrete and other construction cutting. with the feature of operation easily, short preparation, fast cutting speed and high efficiency.

Standard Type for Granite

Model	Main Motor Power	Length of Wire (m)	Line Speed (m/s)	Remark
DWS-22AX-6PG	22KW	5-40	0-30	Used for block cutting
DWS-37AX-8PG	37KW	20-80	0-30	Used for quarrying
DWS-45AX-8PG	45KW	20-100	0-30
DWS-55AX-8PG	55KW	20-120	0-30
DWS-75AX-10PG	75KW	20-150	0-30

Standard Type for Marble

Model	Main Motor Power	Length of Wire (m)	LinearSpeed (m/s)	Remark
DWS-22AX-4PG	22KW	5-40	0-40	Used for block cutting
DWS-37AX-6PG	37KW	20-80	0-40	Used for quarrying
DWS-45AX-6PG	45KW	20-100	0-40
DWS-55AX-6PG	55KW	20-120	0-40
DWS-75AX-8PG	75KW	20-150	0-40

Features:
1.Controlled by dual inverter+PLC,make the diamond wire saw strain constantly and the speed of moving truck automatically controlled.

2.When under the automatic control state,the machine can track changes in the load so as to make the diamond wire saw work efficiently all the time by adjusting the move speed of the machine.

3.Can protect the diamond wire saw from break,overload,lack of phase,terminal limit.

4.Have the easy-operating functions of electric turnover,electric horizontal movement and quick moving.

Remark: We have another Economical Type Wire Saw Machines,DWSJ-30AX-8P & DWSJ-37AX-8P for Granite Cutting and DWSJ-37AX-6P & DWSJ-45AX-6P for Marble cutting,which has the basic functions of standard type difference is that it doesn't have the functions of quickly back moving system neither the unique protection system when wire rope is broken down.

Diamond Wire Saw cutting machine for granite quarry 55kw
