Qingdao Yadong Rubber Machinery Group Co., Ltd.
China Manufacturer with main products: Rubber Mixing Machine, Rubber Vulcanizing Machine, Rubber Extruder Machine, Rubber Calender Machine |
Home

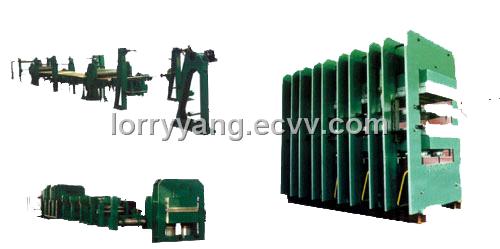

>Products Catalog > Rubber vulcanizing press machine > The Line of Conveyor Belt Vulcanizing Press
| Place of Origin: | Shandong in China |
|---|
Specifications
| Total Pressure (mn) |
28.00 |
|
Platen Size(mm) |
1400X5700X80 |
|
Daylight (mm) |
200-400 |
|
Plate Unit Area Pressure(kg/cm2) |
35.0 |
|
Piston Diamterter (mm) |
φ450 |
|
Piston Stroke (mm) |
400 |
|
Max working Hydraulic Pressure(Mpa) |
17.6 |
|
Max working temperature (℃) |
170 |
|
Max Steam Pressure (mpa) |
1.0 |
|
Cylinder Quantity( set/unit) |
10 |
|
Motor Power (kw) |
66 |
|
Overall Dimension (L X W X H)(MM) |
5700X2350X4200 |
The main machine is of frame structure and equipped with special purpose hydraulic unit. Both the hot plates and piston plunger are all made of superior material, they are accurately processed and have high etch and wear resistance. The control system has been taken up with PLC so as to realize multi program automatic control of curing process, for example, the temperature of the hot plates can be measured and regulated automatically. This will improve the control level and provide with high efficiency of production and low intensity of labor.
