ZHENJIANG HAIRUN ELECTRONICS CO.,LTD
China Manufacturer with main products: antenna |

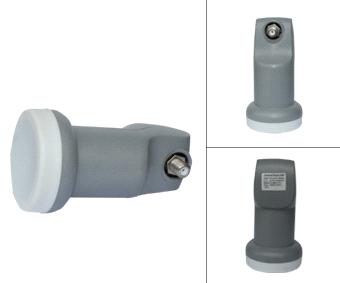

Ku-band Single LNB
| Payment Terms: | T/T(Bank Transfer) |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Specifications
DESCRIPTION: MODEL KL-1B INPUT FREQUENCY 10.7~12.75GHz L.O.FREQUENCY 9.75/10.6GHz ± 1MHz STABILITY ±2MHz(-40~+70) L.O.PHASE NOISE -70dBc/Hz@1KHz -90dBc/Hz@10KHz -105dBc/Hz@100KHz OUTPUT FREQUENCY 950~2150 MHz CONVERSION GAIN 60dB(TYP) GAIN FLATNESS ±0.5dB/36 MHz NOISE FIGURE 0.3dB INPUT V.S.W.R 2.5:1 OUTPUT V.S.W.R 2.5:1 LOCAL LEAKAGE AT INPUT -45dB IMAGE REJECTION 50dB OUTPUT POWER +50dBm(AT 1 dB CMPRESSION) CROSS POLAR ISOLATION 23dB MIN DC SUPPLY VOLTAGE 11~14.5V(V),15.5~22V(H) SUPPLY CURRENT 130mA (MAX.) OPERATING TEMPERATURE -40oC~ +70oC RELATIVE HUMIDITY 0%~95% LOW/HIGH BAND SWITCHING Low Band:0KHz High Band:22KHz±4KHz IF OUTPUT CONNECTER F TYPE FEMALE OUTPUT IMPEDANCE 75 OHMS
