>Products Catalog > Volume controller > Thinuna VC-330A VC-360A VC-3120A Attenuator - 3 Wire Paging Type

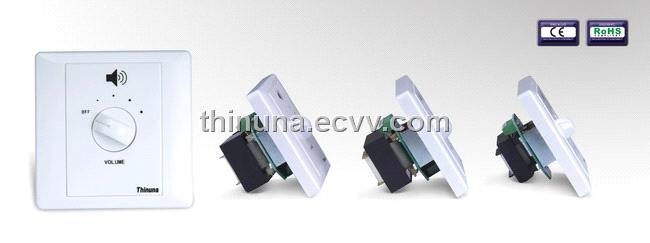

Thinuna VC-330A VC-360A VC-3120A Attenuator - 3 Wire Paging Type
| Supply Ability: | 5,000 Piece/Pieces per Month |
|---|---|
| Shipping: | 30 |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Place of Origin: | Guangdong in China |
|---|
Specifications
FEATURES:
Extensive use in 2 wire or 3 wire PA system.
3 wire type system for emergency paging and override.
Flush-mounted or sufface-mounted via standard module plate.
All model use a transformer which allows connection of a wide range of loads and reduce power loss.
Modern, stylish, elegant design.
5 steps volume control.
Locking connector with screw-down Phoenix terminals.
Space saving design for quick and easy installation.
SPECIFICATIONS
|
Model No. |
VC-330A |
VC-360A |
VC-3120A |
|
Rated Input |
30W |
60W |
120W |
|
Application Range |
0.5W～30W |
0.5W～60W |
0.5W～120W |
|
Volume Control |
5 steps（OFF，-18dB，-12dB，-6dB，0dB） | ||
|
Method |
Transformer | ||
|
Emergency Paging |
3-wire emergency paging: HOT, EM, COM | ||
|
Termination |
Phoenix terminal; Input: HOT, EM, COM; Output: SPK+, SPK- | ||
|
Material |
Panel: High Impact ABS | ||
|
Color |
White | ||
|
Temperature / Humidity |
-20°C ~ 55°C; <95% | ||
|
Dimensions |
87(W)×87(H)×40(D)mm |
87(W)×87(H)×50(D)mm |
87(W)×87(H)×50(D)mm |
|
Weight |
157g |
317g |
503g |
|
Flush Box |
Standard Chinese 86 or 75 Boxes | ||
