>Products Catalog > Carbon inside series > Black Conductive Carbon Inside Polyester Fiber Filaments ESD Gloves Yarn 150D/36F for Anti-Static Fabric XT11359

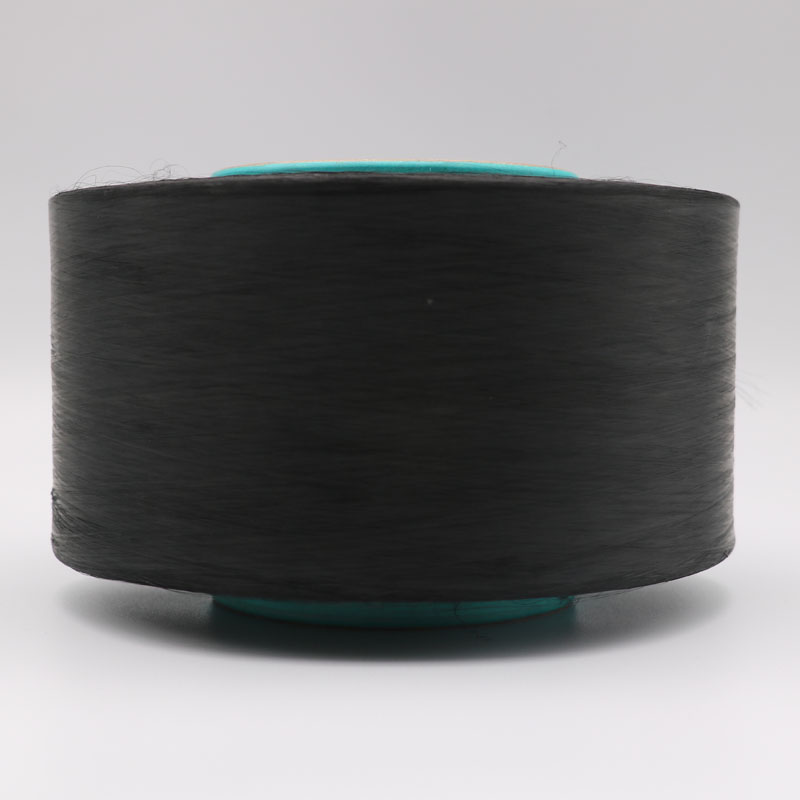

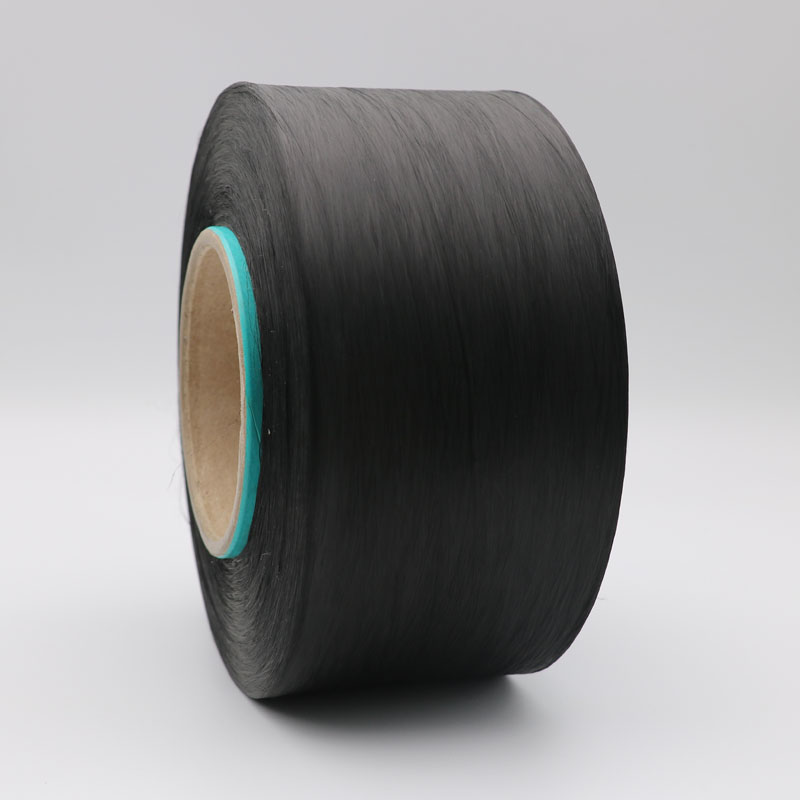

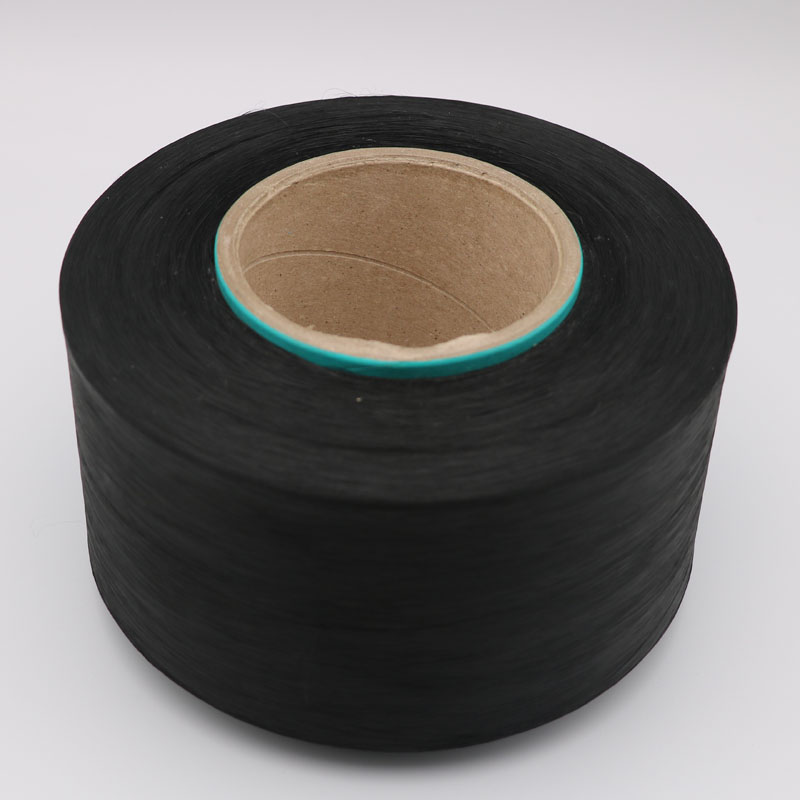

Black Conductive Carbon Inside Polyester Fiber Filaments ESD Gloves Yarn 150D/36F for Anti-Static Fabric XT11359
| Supply Ability: | 3,000 Kilogram(s) per Month |
|---|---|
| Shipping: | FOB Shanghai |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | For example, if net weitht 1000kg, Need 63 cartons(5 pallets) Gross weight: 1540kg. Total volume: 7.34 CBM. Dimensions for carton: 32cm*42cm*80cm. |
Quick Details
- Product Type: Nylon
- Brand Name: Yestar
- Feature: ESD
- Pattern: Raw
- Material: Nylon 6
- Product Type: conductive fiber
- Model Number: XT11359
- Fiber Length: continuous
- Fineness: 150D
- Use: Non-Woven Fabric,Spinning,Weaving
- Feature: conductive
Specifications
black conductive carbon inside polyester fiber filaments ESD gloves 150D/36F for ESD fabrics
A) cross section: threeleaf type/outer trilobal type
B) conductive materials: carbon grains.

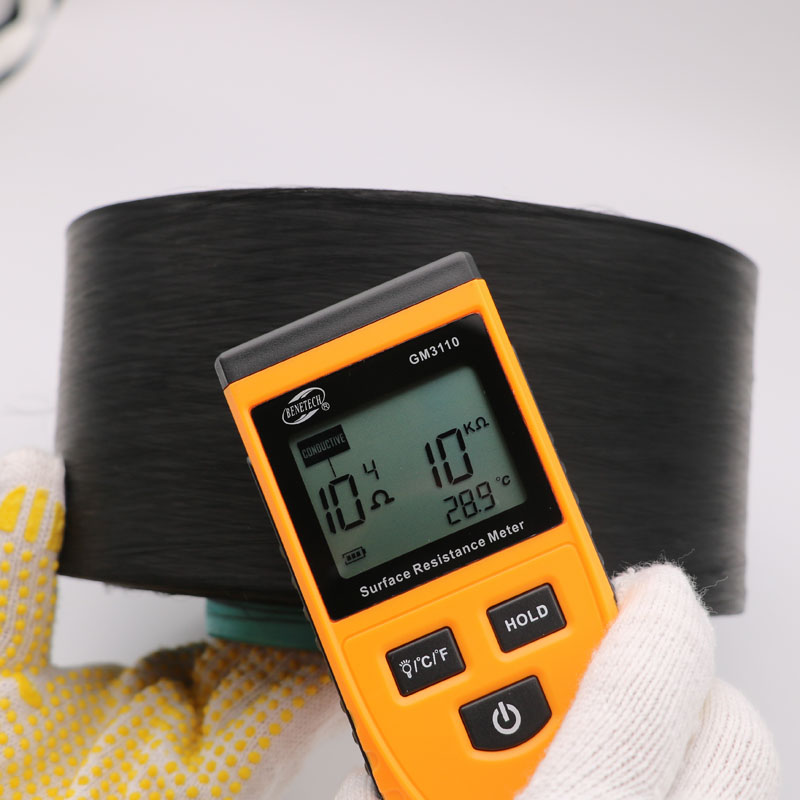

C) surface resistance: 10^4~10^5 ohm.
Also could supply 20D/3F, 20D/4F, 35D/6F, 40D/3F, 40D/6F, 100D/12F, etc.
| Denier/Filament(s) | Based Materials | Conductive grains | Color | Surface resistance |
| 20D/1F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 40D/3F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 40D/6F | Nylon 6 | Carbon | Black | 10^4~10^5 ohm |
| 20D/3F | Nylon 6 | Metal oxide | White | 10^7~10^8 ohm |
| 20D/3F | Nylon 6 | Carbon | Black | 10^5~10^6 ohm |
| 20D/4F | Polyester | Carbon | Black | 10^6 ~ 10^7 ohm |
| 50D/8F | Polyester | Carton | Black | 10^6 ~ 10^7 ohm |
| 20D/3F | Polyester | Carbon | Light grey | 10^6 ohm |
| 35D/6F | Nylon | Carbon | Black | 10^6 ohm |
Application:
Embeded this conductive filaments into the fabric of anti-static work wear and cleanroom garments by regular grd/stripe , this fabric could electro static discharge.
* Dustless fabric
* linings of top grade suit
* Anti-static kniting gloves
* Anti-static fabrics
* Anti-static single yarn drill and ply-yarn drill
* Anti-static filter felt.
Packaging & Shipping
500-800grams/bobbin, is not even net weight.
16 or 24 bobbins/carton
Could ship by international express or by general air transportation or by sea.
Our Services
If less than 100kg, could send out within 7 days approx.
If more than 1000kg, could finish them within 26 days approx..
Company Information
We produced this types of products more than 15 years, it is best-selling goods in EU, Turkey, India, USA, Argentina, Brazil, etc.
FAQ
a) If export to Turkey, could supply Exporter Registry Form and Certificate of origin?
Yes, we exported this products to Turkey more than 10 years, very familiar with Turkey's market.
B) Could use this filaments for knitting/weaving directly?
No, should intermingle/twist/cover with common polyester filaments FDY(DTY) black(white) 50D/75D/100D/150D/200D/280D in advance, then, could be used for weaving/knitting.
of course, also could twist/cover with cotton yarn/polyester staple fiber spun yarn, then, used for weaving/knitting.
Such as:
i) Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) intermingling with common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D
ii) Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) twisting with common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D
iii) Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D by S direction only.
iiii) Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester DTY(FDY) filaments 50D/75D/100D/150D/200D by S direction and Z direction concurrently.
C) Could keep ability of electro static discharge after 250 times washing?
of course, so long as this materials exists in, it always has this capacity of Electro static discharge.
