chizhou flydragon machinery trading co.,ltd
China Manufacturer with main products: bench lathe, multi-purpose machine, drilling and milling machine, milling machine |

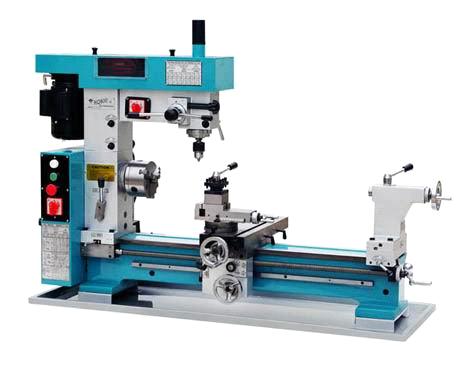

multi-purpose machine
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 30 days |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Anhui in China |
|---|---|
| Packaging Details: | Wooden cases |
Specifications
Information： Technical data Item HQ500 HQ800 Swing over bed 420mm 420mm Distance between centers 500mm 800mm Max. longitudinal travel 440mm 740mm Max. cross travel 200mm 200mm Spindle taper M.T.4 M.T.4 Spindle hole 28mm 28mm Speed step of spindle 7 7 Speed range of spindle 160-1360rpm 160-1360rpm Barrel travel 70mm 70mm Barrel taper M.T.3 M.T.3 Metric thread range 0.2-6mm 0.2-6mm Inch thread range 4-120T.P.I. 4-120T.P.I. Longitudinal range of automatic feeding 0.05-0.35mm(0.002-0.014) 0.05-0.35mm(0.002-0.014) Cross range of automatic feeding 0.05-0.35mm(0.002-0.014) 0.05-0.35mm(0.002-0.014) Max. drilling capacity 22mm 22mm Worktable size 475mmx160mm 475mmx160mm End mill capacity 28mm 28mm Face mill capacity 80mm 80mm Max. distancefrom spindle center to column 285mm 285mm Max. distance from spindle nose to worktable 306mm 306mm Spindle travel 110mm 110mm Spindle taper M.T.3 M.T.3 Speed step of spindle 16 16 Speed range of spindle 120-3000rpm 120-3000rpm Swivel angle of headstock ±1800 ±1800 Motor power/spindle power 0.55Kw/0.55Kw 0.55Kw/0.55Kw Voltage/Frequency As customers'' requirement As customers'' requirement Motor speed 1400rpm 1400rpm Overall szie 1460x580x965mm 1760x580x965mm Packing size 1130x580x1100mm 1430x580x1100mm Net weight/Gross weight 245kg/280kg 275kg/325kg Loading amount 40pcs/20''container 26pcs/20''container
