Home >Products Catalog > multi-purpose machine

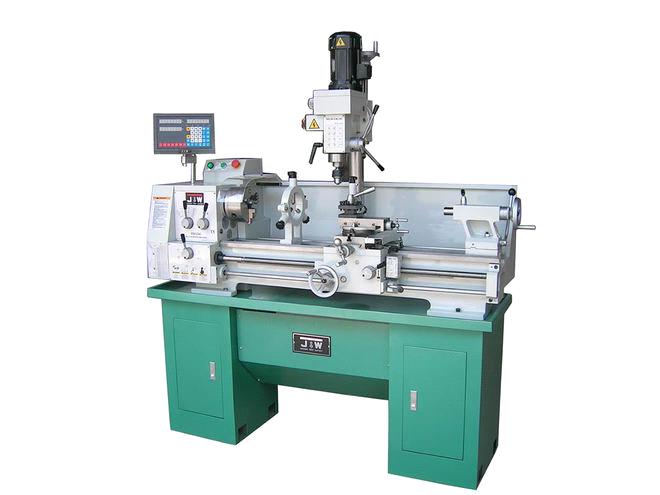

multi-purpose machine

Supply Ability:	100 Set/Sets per Month
Shipping:	30 days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

soft pipe canned sealing tail machine (MGFJ-60)

Price:

Min. Order:
Rotary Drier

Price:3000.00-230000.00 USD/Set

Min. Order:1 Set
Nail making machine

Price:2800.00-6500.00 USD/Set

Min. Order:1 Set
steel grain bin forming production line

Price:

Min. Order:
Yunxi Shaking Table

Price:

Min. Order:

Product Details

Place of Origin:	Anhui in China
Packaging Details:	Wooden cases

Specifications

Information： TURNING Max. Swing over bed 330mm Max. Length of work piece 915 mm Max. Swing diameter over tool post 180mm Spindle Bore 38mm Spindle Taper MT.5# Max Lateral Stroke over tool post 140mm Max Longitudinal stroke over tool post 100mm Metric Thread kinds on processing 17 Inch Thread kinds on processing 24 Metric thread pitch on processing 0.5-4 mm Inch thread pitch on processing 9-40 1/n” Longitudinal–feed on spindle tool post 0.1-1.396mm/r Max. stroke of tail stock sleeve 70mm Tail stock sleeve taper MT.3# Spindle speeds available 12 Spindle speeds range 60-1650mm/r（50HZ） Lathe Electromotor 1.1kw DRILLING&MILLING Max. drilling capacity 16mm End milling capacity 16mm Face milling capacity 50mm Spindle travel 60mm Taper of hole in spindle MT.3# /or R8 Spindle speed step 4 Spindle speeds range 220-2150mm/r (50Hz) Head tilt left right +-90。 Distance from spindle nose to table 305mm Min. distance from spindle axis to column 213.5mm Column diameter 70mm Drill/Mill Electromotor power 0.55kw Net weight 450 kgs / 480 kgs 420kgs / 500 kgs Full size 145 cm*65cm*110 cm 162 cm*65cm*110cm Outer packing size 155cm*76cm*120cm 172m*76cm*120 cm
