Pipe Plasma Cutting Machine

Specifications

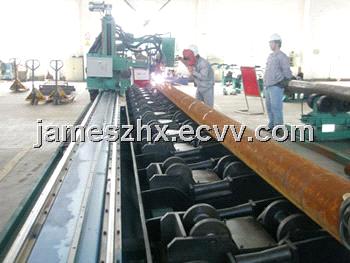

Roller-bed-type Pipe Plasma Cutting Machine Model:BPPBM-24A

Performance Characteristics

1.On-line Performance: Good (designed for flow process)

2.Beveling Capacity: ≤3 Min/ pipeline (DN200 SCH40)

3. Cutting Capacity: one Beveling per time

4. Beveling: high quality

5. Price: Higher than Flaming Jet Beveling and Cutting Machine with Roller Bed

Technical parameter:

1. Pipe diameter: DN100-600(φ114-610)

2. Pipe thickness: 1-18

3. Pipe materials: carbon steel, alloy steel, stainless steel and cryogenic steel.

4. Type Of Bevel:Ｖ

5. Cutting Length: 6350MM 6. Cutting Direction: radial direction 7. Rolling Machine: Structure: Double-roller with fixed distance Rolling Machine Length:7000MM Driving System: servo motor with precision reducer Rotation Speed:0-2.5M/Min(stepless speed regulation of frequency conversion) Rolling Machine Material:45#,surface with flange Rotation Accuracy:<2.0MM

8. Trolley System: Trolley Trip:6350MM , vertical move Cutting Torch Trip:700MM(Ascending-descending),300MM(Left-Right) Cutting Mode:Plasma Cutting Torch Angle:±35° Cutting Torch Quantity: one piece Tracking System:high precision Angle Error:<2° Length- determination System:<2.0MM

9. Control System: SH-2000H NC Flame Cutting System 10.Control System of a Definite Length: Included in control system

11.Logistics System: Logistic System with elevator , driven by motor or electric

12.Cutting Power:OEM (or as per customers' demands) Products Long-distance Pipeline Construction EquipmentPipeline Internal-expanding End Beveling MachinePiping Internal Pneumatic Pipe Line-Up Clamp Piping All-position Automatic Welding Machine(FCAW/GMAW) Pipe Cutting EquipmentPipe CNC Cutting Band Saw MachinePipe CNC Profile Cutting Machine Pipe Cutting Band Saw Machine .Pipe Beveling MachinesFixed-type Highly-efficient Pipe Cutting and Beveling MachineFixed-type Radial Pipe End Beveling MachineFixed-type Axial Pipe End Beveling MachineMovable Internal-expanding Pipe End Beveling Machine Movable Orbit-type Pipe Cutting and Beveling MachineRoller-bed-type Pipe Flame Cutting and Beveling MachineRoller-bed-type Pipe Plasma Cutting and Beveling MachineRoller-bed-type Pipe High-pressure Water Cutting and Beveling MachineMagnetic Pipe Flame Cutting and Beveling MachineFixed-type CNC Pipe End Beveling MachineOrbit-type Pipe Flame Cutting and Beveling MachineFixed-type Two-direction Pipe End Beveling Machine.Other Pipe Processing MachinesPiping Welding Displacement MachinePipe Logistics Transportation System for Band Saw MachinePipe Logistics Transportation System for End Beveling MachinePipe Logistics Transportation System for Cutting and Beveling MachinePipe Logistics Transportation System for Bevel Cutting MachinePipe Logistics Automatic Transportation SystemMechanical Type Pipe Cutting Length-Measuring SystemSlip-on Flange Fast Fitting-up MachinePiping Prefabrication Fast Fitting-up Machine.Pipe Prefabrication Software ProgramPDSOFT-Pipe Designing and DrawingPDSOFT-Pipe Processing ManagementManagement System of Pipeline Prefabrication.Training Service-Pipeline PrefabricationTraining and Take the LicenseDrawing and Design TrainingFactory Programming and Design ServiceFactory Construction and Running ServiceLabor Export ServiceContracting ServiceRenting Service.Piping Prefabrication.Hot Products Piping Prefabrication Production Line . Piping Prefabrication - Workstation ..
