Wai Kar Industrial Co., Ltd
China Manufacturer with main products: poultry&livestock feeds and aquafeeds processing lines and machinery |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
|

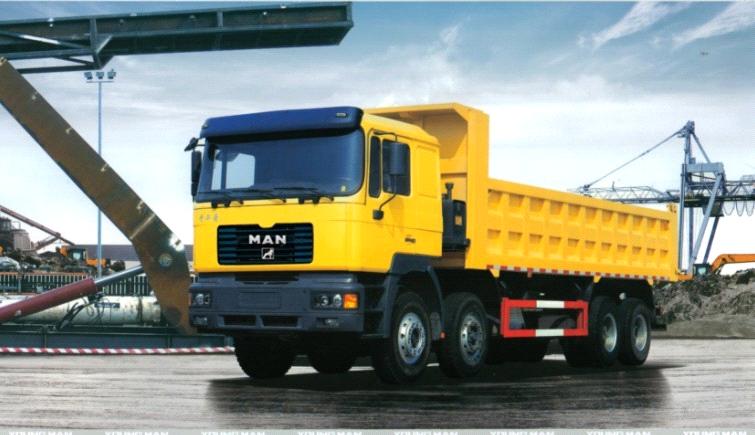

GW3310FD19 Dump Truck
|
|||
|
Mode
|
GW3310FD19
|
||
|
Driveline
|
8X4
|
||
|
Wheelbase
|
1500+4325+1350
|
||
|
Overall dimension
|
Length(mm)
|
10620
|
|
|
Width(mm)
|
2450
|
||
|
Height(mm)
|
3450
|
||
|
Track
|
FR/RR(mm)
|
2006/1864
|
|
|
Overhang
|
FR/RR(mm)
|
1525/2130
|
|
|
Kerb weight(kg)
|
15470
|
||
|
GVW(kg)
|
31000
|
||
|
Max speed
|
Km/h
|
68
|
|
|
Engine style
|
|||
|
Model
|
Weichai WP10.375 (option: MAN)
|
||
|
Type
|
24 valve, intercooling, EDC diesel engine
|
||
|
Number of cylinder
|
Direct-in-line 6 cylinder
|
||
|
Displacement (L)
|
9.726
|
||
|
Emission
|
Euro Ⅲ
|
||
|
Max output (ps/rpm)
|
276(375)/2200
|
||
|
Max torque (kg.m/rpm)
|
1460/1200-1600
|
||
|
Clutch
|
|||
|
Type
|
Hydraulic control air assistant
|
||
|
Single dry plate, hydraulic control with air pressure assistance, Diaphragm Spring
|
|||
|
Material
|
Non-asbestos
|
||
|
Transmission
|
|||
|
Model
|
RT11509C (option: Fuller, ZF)
|
||
|
Type
|
9 forward gear, 1 rear gear
|
||
|
Gear device
|
Mechanical form
|
||
|
Rear
|
|||
|
Model
|
YOUNGMAN
|
||
|
Type
|
Floating
|
||
|
Permissible loading (kg)
|
13000x2
|
||
|
Speed ratio
|
5.73
|
||
|
Front axle
|
|||
|
Type
|
YOUNGMAN
|
||
|
Permissible load
|
kg
|
7500x2
|
|
|
Tyre
|
|||
|
Tyre
|
12.00-20
|
||
|
Braking system
|
|||
|
Pedal brake
|
type
|
Dual-circuit air system, F/R drum brake, with ABS
|
|
|
Valve brake
|
WEVB system with engine, butterfly valves
|
||
|
Suspension
|
|||
|
Type
|
FR/RR
|
Spring plate, Parabolic/Multi-leaf spring, suspension for balance
|
|
|
Shock-absorber
|
Dual-oriented folding shock-absorber and stable horizontal bar in front axle
|
||
|
Oil Tank
|
|||
|
Material
|
Aluminum alloy
|
||
|
Fuel tank capacity
|
Liter
|
400L
|
|
|
Other
|
|||
|
Low roof single bed luxury floating cabin of MAN FA2000 style. High quality pressing alloy steel which is fine and yield strengthening is adopted into vehicle frame. The alloy steel, which is wide on the front and narrow on the rear and without bolt on both interface of up and down and auto fitting, is molded immediately.
|
|||
