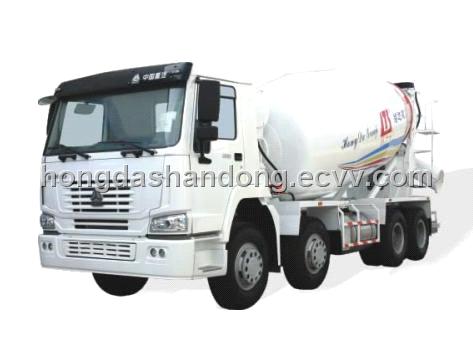

Concrete Mixer Truck / Concrete Truck

Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Specifications

Concrete Mixer Truck / Concrete Truck		Parameter
Concrete Mixer Truck / Concrete Truck		Unit	8m3	9m3	10m3	12m3	16m3
Complete vehicle Parameters	Model		ZZ1257N3247C/ ZZ1256N3246C	ZZ1256N3846C/ ZZ1257N3847C	ZZ1257N4048W/ ZZ1256N4046C1	ZZ1257N4048W/ ZZ1256N4046C1/ ZZ1317N3267C	ZZ1317N3667C1
	Total length	mm	8715/8555	9200/9050	9800	9880/9800/10300	10850
	Total Width	mm	2496/2490	2490	2490	2496	2496
	Total height	mm	3800	3800/3750	3830	3920/3880/3950	3980
	Chassis model		HOWO ZZ1257N3247C/ STEYER ZZ1256N3246C	STEYERKING ZZ1256N3846C/ HOWO ZZ1257N3847C	HOWO ZZ1257N4048W/ ZZ1256N4046C1	HOWO ZZ1257N4048W/ ZZ1256N 4046C1/ HOWO ZZ1317N3267C	HOWO ZZ1317N3667C1
	Overall weight	kg	25000/24795	25000	25000	31000	31000
	Curb weight	kg	13500/12600	13000/13500	15650	15000/15000/ 16300	16600
	Wheel base	mm	3225+1350/ 3225+1350	3800+1350	4025+1350	4025+1350/ 1800+3200+1350	1800+3600+1350
	Front tread	mm	2022,2041/ 1939,1958	1939,1958/ 2022,2041	2022	2022,2041/ 1939,1958/ 2022	2022
	Rear tread	mm	1830	1830	1830	1830	1830
	Tyre model		11.00-20, 12.00-20	11.00-20, 12.00-20	11.00-20, 12.00-20	11.00-20,11.00R 20,12.00-20,12.00R20/ 12.00-20,12.00R 20,11.00-20,11.00R20/ 11.00-20,11.00R 20,12.00-20,12.00R20	11.00-20,11.00R 20,12.00-20,12.00R20
	Front overhang	mm	1500/1560	1560/1500	1500	1500/1560/1500	1500
	Rear overhang	mm	2640,2615/ 2420	2490/2375	2980	3005,2980/2890/ 2450	2600
	Min. Turning Radius	m	7.6	9.8	10.1	10.1/11.5	11.5
	Max. Speed	Km/h	90,102/75	75/90	86/97	86/97/90	90
	Steering device (GERMANY)		ZF8098	ZF8098	ZF8098	ZF8098	ZF8098
	Oil consumption per 100 kilos(under limited conditions)	L	32	34	34	34/38	38
Engine	Engine model		WD615.95, WD615.96/ WD615.95E, WD615.96E	WD615.95, WD615.95E, WD615.96, WD615.96E/ WD615.95, WD615.95E	WD615.95(E)	P11C-UH, WD615.95/ WD615.95, WD615.95E, WD615.96, WD615.96E,/ WD615.95, WD615.96, WD615.95E, WD615.96E	WD615.95, WD615.96, WD615.95E, WD615.96E
	Cylinder number and arrangement		Linear 6-cylinder	Linear 6-cylinder	Linear 6-cylinder	Linear 6-cylinder	Linear 6-cylinder
	Engine max. output power	kw	247/2200, 276/2200/ 247/2200, 276/2200	247/2200, 247/2200, 276/2200, 276/2200/ 247/2200, 247/2200	247/2200	240/2100, 247/2200/ 247/2200, 276/2200/ 247/2200, 276/2200, 247/2200, 276/2200	247/2200, 276/2200, 247/2200, 276/2200
	Engine max. output torque	N.M	1350/1100-1600, 1500/1100-1600/ 1350/1100-1600, 1500/1100- 1600	1350/11001600, 1350/11001600, 1500/11001600, 1500/11001600/ 1350/1300-1600	1420/1100	1420/1100, 1350/13001600/ 1350/11001600, 1500/11001600/ 1160/11001600	1350/1100-1600, 1500/1100-1600, 1350/1100-1600, 1500/1100-1600
Working device	Mixing Drum Volume	M3	12.8	14.7	17.05	19.65	24.1
	Mixing cubage	M3	8	9	10	12	16
	Mixing Drum Slope Angle	%	15	13.5	12	12/11	10
	Mixing Drum Rotating Speed	r/min	0-14	0-14	0-14	0-14	0-14
	Feeding speed	M3/min	≥3.5	≥3.5	≥3.5	≥3.5	≥3.5
	Discharge speed	M3/min	≥1.5	≥1.5	≥1.5	≥1.5	≥1.5
	Slump	mm	100-230	100-230	100-230	100-230	100-230
	Surplus rate	%	<0.5	<0.5	<0.5	<0.5	<0.5
	Water tank Capacity	L	260	260	260	260	260
