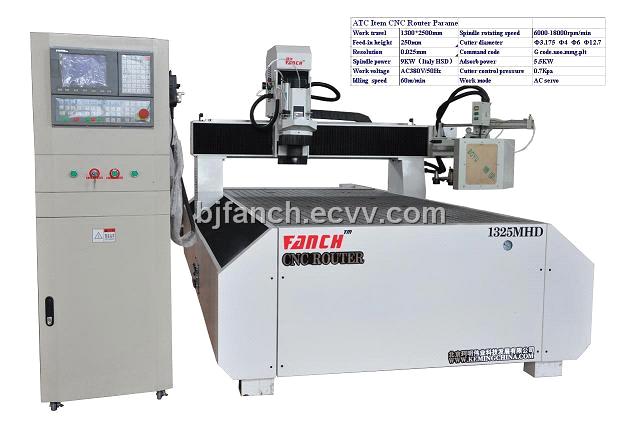

Fanch CNC Router with ATC
| FOB Price: | 0.10 - 0.20 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 10days after payment |
| Payment Terms: | T/T, Western Union, N/A |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | wooden case |
Specifications
FC-1325MHD
Features of Fanch CNC Router:
1. The famouse brand high power wind-cooling spindle which imported from Italy are with high precision ,long time using,smoothly running,and good startup performance,big moment,can totally make out high speed of this machine,higher efficiency.
2. Automatic tool-change systems like a bamboo hat, which can contain 8 knives, only need 10 seconds the tool can be changed. It has special knife table for focusing that can make up the error of the knives’ length.
3. The whole lathe is thickening, scientific welded, so it will not become distorted.
4. Using imported straight-quadrate rail, two rows and four lines-rolling block devices that ensure it’s high loading capacity and moves steadily. The high quality steel guide with high precision and intension ensure the precision and wearability and it’s service time is 10 times higher than round guide. The imported screw rod is very precise.
5. Using the Taiwan baoyuan controlling system with high performance, high quality and better maintenance It can control the 3D-processing which process, engrave and cut quickly and smoothly.
6. Software has good compatibility and is compatible with several design software such as type 3/Actcam/CAD/CAM.
7. Vac-sorb table that made of specialcarte has good insuction, which can strongly insuct different areas’material, high density,and not distorted.
8. Using automatic oiling-lubrication system, which can be controlled by a button. It is easy to use and maintain.
9. Fanch CNC Router adopts Japanese servo drive system with large power. Y axis uses double-motor drive. The running speed can reach to 60m/min above when no material are processing.
10. Using imported transducer and servo-drive and motor imported from Japan, the electric parts of Siemens.
11. Using precise automatic fixing knives system make the operation more quickly that increase the efficiency.
FC-1325MHD Fanch CNC Router Technology Parameter
|
Table area
|
1440*3040mm
|
|
Work travel
|
1300*2500mm
|
|
Feed-in height
|
200mm
|
|
Resolution ratio
|
0.025mm
|
|
Spindle power
|
8KW(ItalyHSD)
|
|
Work voltage
|
AC380V/50Hz
|
|
Operating speed
|
60m/min
|
|
Spindle rotating speed
|
6000-18000rpm/min
|
|
Cutter diameter
|
Ф3.175 Ф4 Ф6 Ф12.7
|
|
Command code
|
G code.uoo.mmg.plt
|
|
Adsorb power
|
5.5KW
|
|
Cutter control pressure
|
0.7Kpa
|
|
Work mode
|
AC servo
|
